SINGLE-PFPS24-MIN-SCREWS

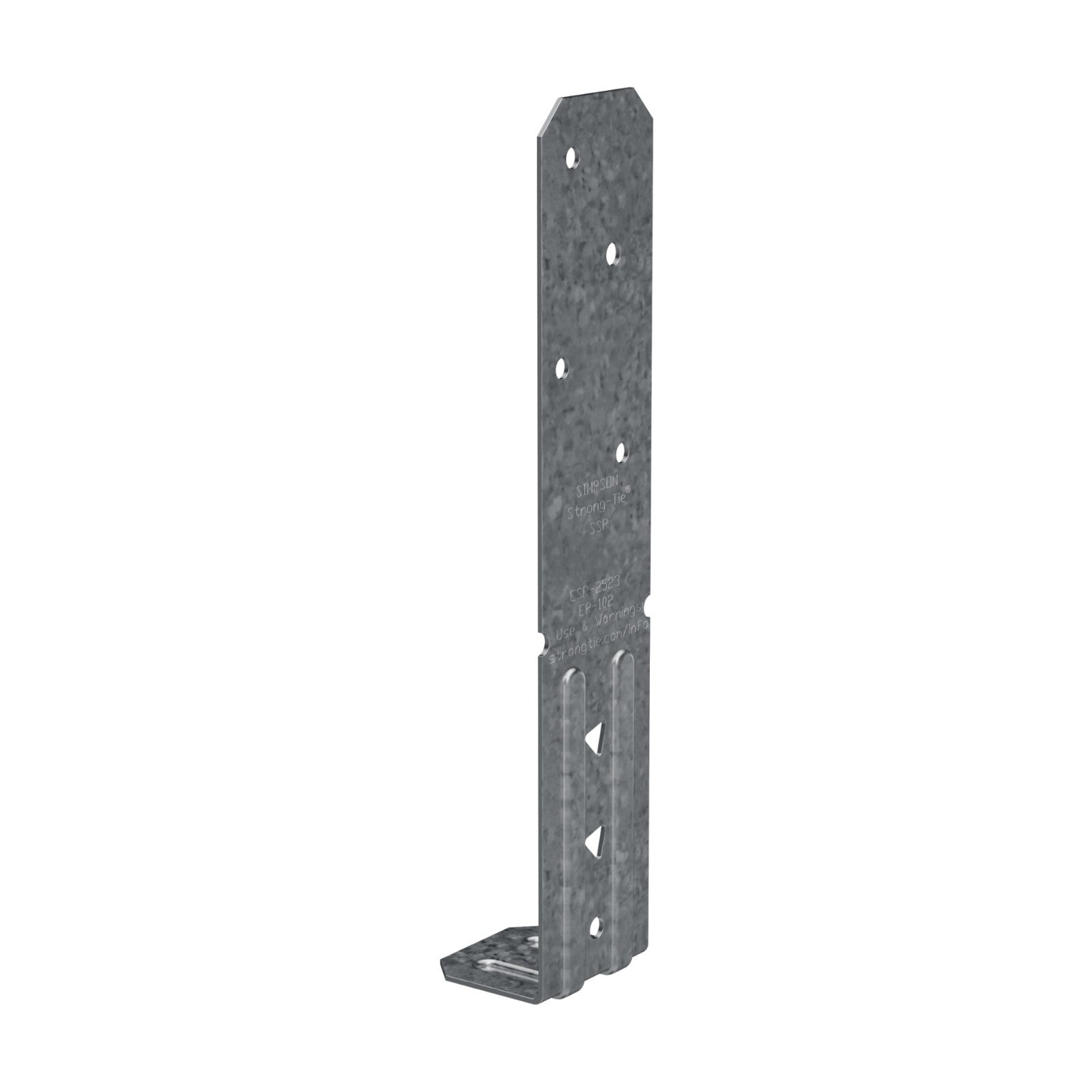

Purlin Splice (PFPS)Post-Frame Purlin Splice. Eliminates overlapped purlins, allowing in-line alignment. Designed for 2x4 and 2x6 purlins. Can be installed individually or in pairs (doubled) for increased load values.
| Hanger Width | N/A" |
|---|---|
| Hanger Depth | N/A" |
| Ga | 18 |
| Fasteners Qty | 3 |
| Fastener Type | SD9112 |
| Df Sp Vert | 445 |
| Df Sp F1 115 | 215 |
| Df Sp F2 125 | 590 |
| Df Sp F2 160 | 630 |
| Df Sp F3 160 | 630 |
| Df Sp M2 | 1290 |
| Spf Hf Vert | 340 |
| Spf Hf F1 115 | 215 |
| Spf Hf F2 125 | 385 |
| Spf Hf F2 160 | 420 |
| Spf Hf F3 160 | 540 |
| Spf Hf M2 | 1128 |
