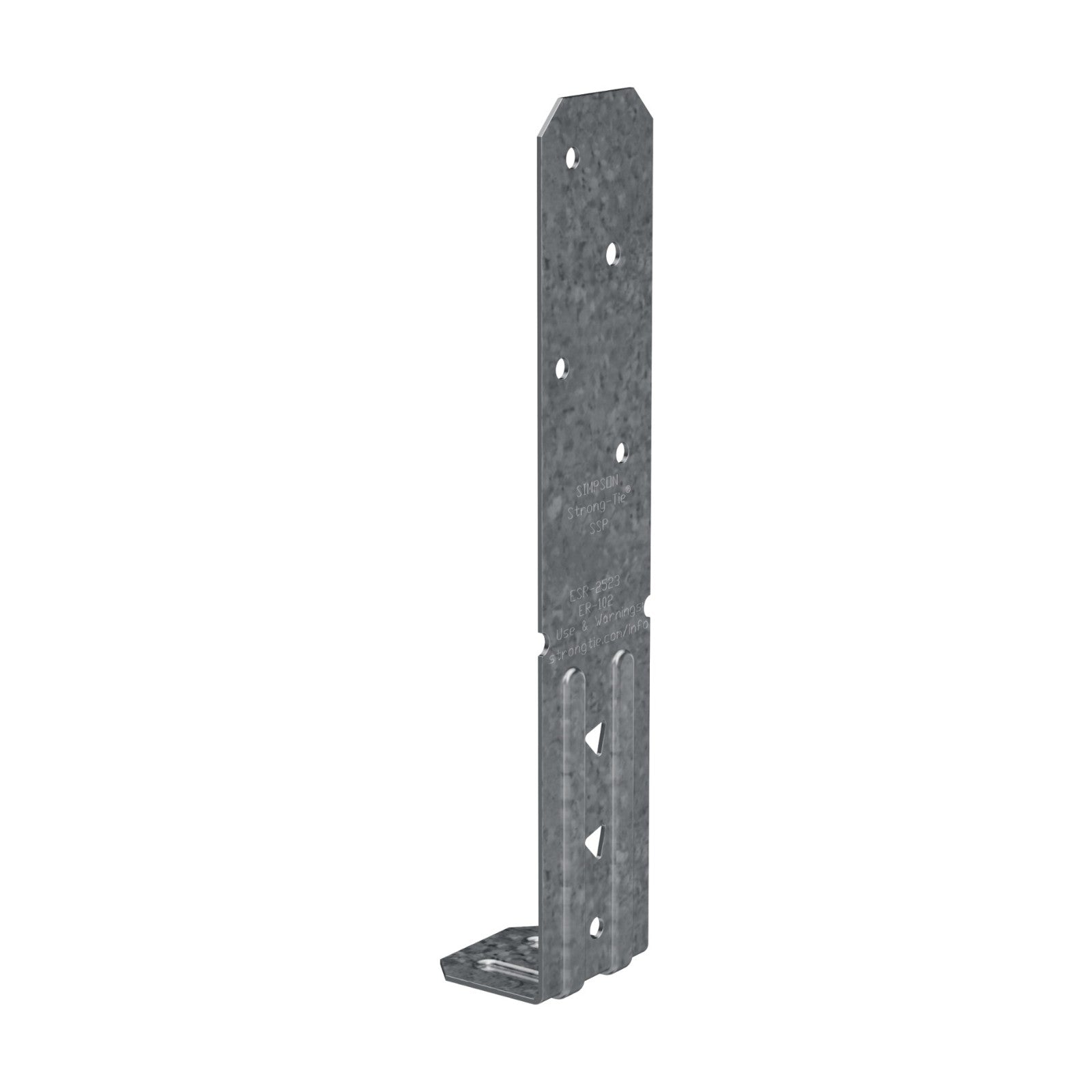

SINGLE-PFPS24-MAX-NAILS
Purlin Splice (PFPS)Post-Frame Purlin Splice. Eliminates overlapped purlins, allowing in-line alignment. Designed for 2x4 and 2x6 purlins. Can be installed individually or in pairs (doubled) for increased load values.
| Hanger Width | N/A" |
|---|---|
| Hanger Depth | N/A" |
| Ga | 18 |
| Fasteners Qty | 5 |
| Fastener Type | 0.148" x 1 1/2" |
| Df Sp Vert | 455 |
| Df Sp F1 115 | 230 |
| Df Sp F2 125 | 675 |
| Df Sp F2 160 | 725 |
| Df Sp F3 160 | 775 |
| Df Sp M1 | 1055 |
| Df Sp M2 | 1095 |
| Spf Hf Vert | 340 |
| Spf Hf F1 115 | 230 |
| Spf Hf F2 125 | 580 |
| Spf Hf F2 160 | 625 |
| Spf Hf F3 160 | 670 |
| Spf Hf M1 | 970 |
| Spf Hf M2 | 1010 |
