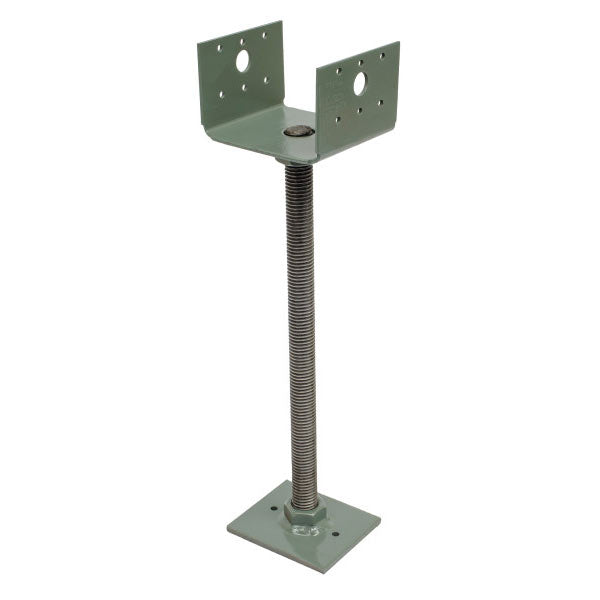

PPBF66
DESIGN Wind and SDC A&BAdjustable porch post base supporting permanent framing through all phases of construction. Seat height adjusts to accommodate 4" to 12" slab thicknesses.
| Hanger Width | N/A" |
|---|---|
| Hanger Depth | N/A" |
| Min Slab Depth | 4 |
| Nominal Column | 6x6 |
| W1 | 5 1/2 |
| W2 | 5 1/2 |
| Fasteners Found | (2) 3/16 x 1 3/4 Titen Turbo |
| Fasteners Post | (12) 0.148 x 1 1/2 nails |
| Pre Pour Uplift 160 | 410 |
| Pre Pour Down 100 125 | 5350 |
| Embedded Uplift Corner 160 | 1355 |
| Embedded Down 100 125 | 5350 |
