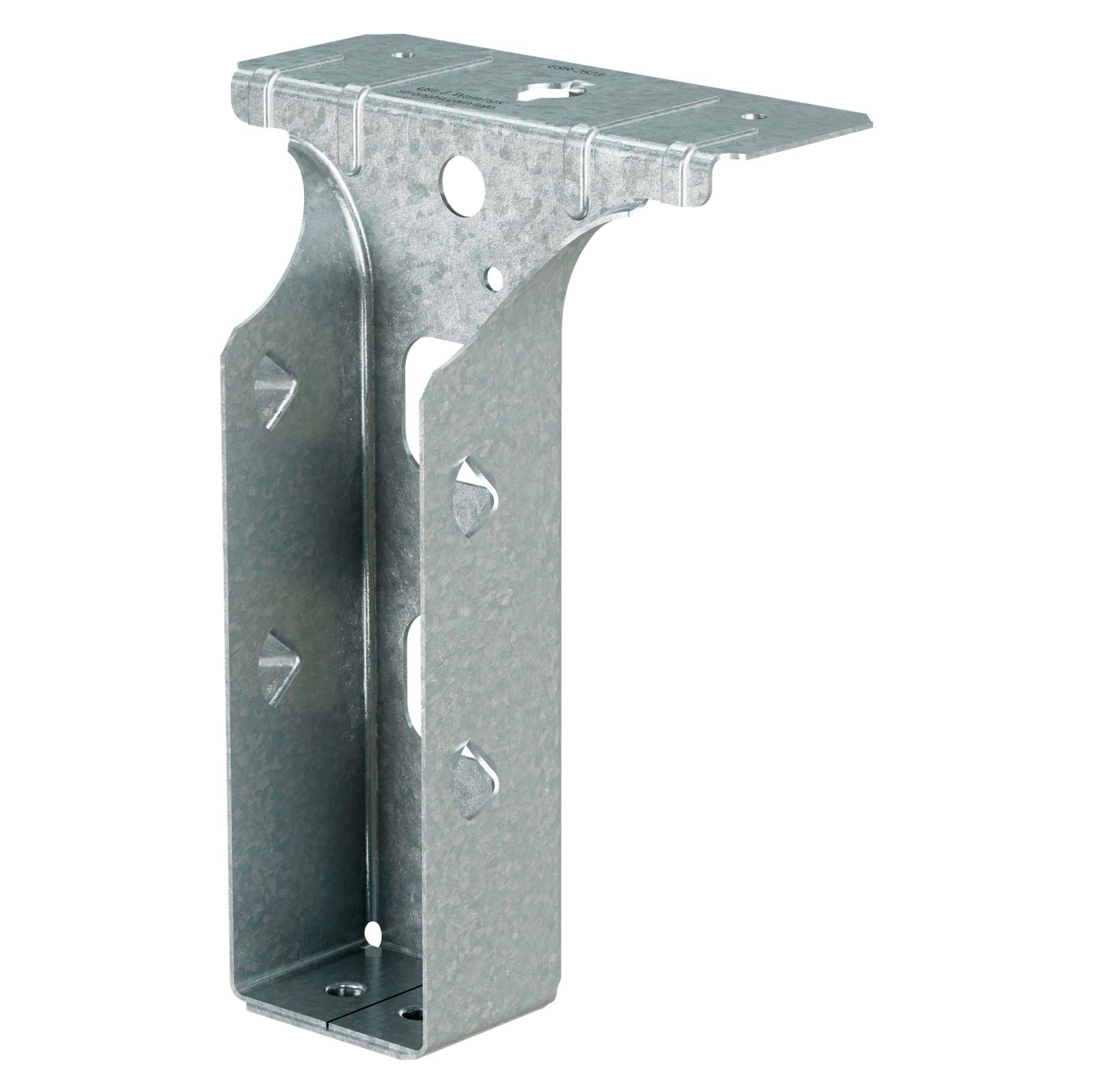

PF28B-1.5"-PURLIN-NAILS
Post-Frame Top-Flange HangerTop-flange hangers designed for post-frame construction. The PFB and PFDB feature dome-shaped joist nail holes and a folded seat. PF/PFB/PFDB are for solid sawn lumber; PFDL is for LVL carrying members.
| Hanger Width | 1 9/16" |
|---|---|
| Hanger Depth | 7 1/8" |
| Ga | 20 |
| B | 1 1/4 |
| Tf | 1 1/2 |
| Fasteners Top | (2) 0.148 x 1 1/2 |
| Fasteners Face | (4) 0.148 x 1 1/2 |
| Fasteners Jst | (6) 0.148 x 1 1/2 |
| Uplift 160 Df Sp | 675 |
| Download Df Sp | 1335 |
| Uplift 160 Spf Hf | 580 |
| Download Spf Hf | 1085 |
