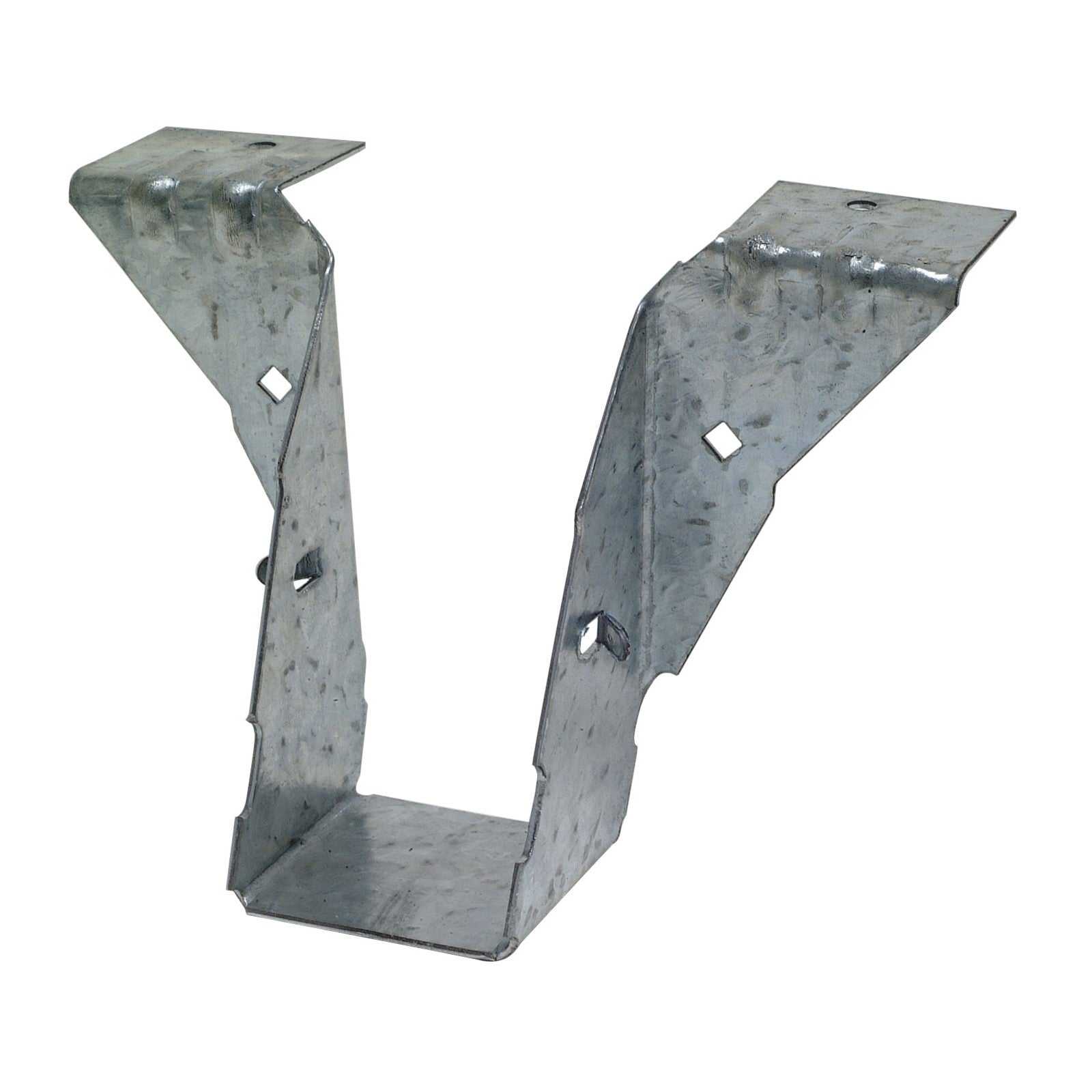

PF24
Post-Frame Top-Flange HangerTop-flange hangers designed for post-frame construction. The PFB and PFDB feature dome-shaped joist nail holes and a folded seat. PF/PFB/PFDB are for solid sawn lumber; PFDL is for LVL carrying members.
| Hanger Width | 1 9/16" |
|---|---|
| Hanger Depth | 3 3/8" |
| Ga | 18 |
| B | 1 1/2 |
| Tf | 1 1/16 |
| Fasteners Top | (2) 0.148 x 3 |
| Fasteners Jst | (2) 0.148 x 3 |
| Uplift 160 Df Sp | 300 |
| Download Df Sp | 1255 |
| Uplift 160 Spf Hf | 230 |
| Download Spf Hf | 660 |
