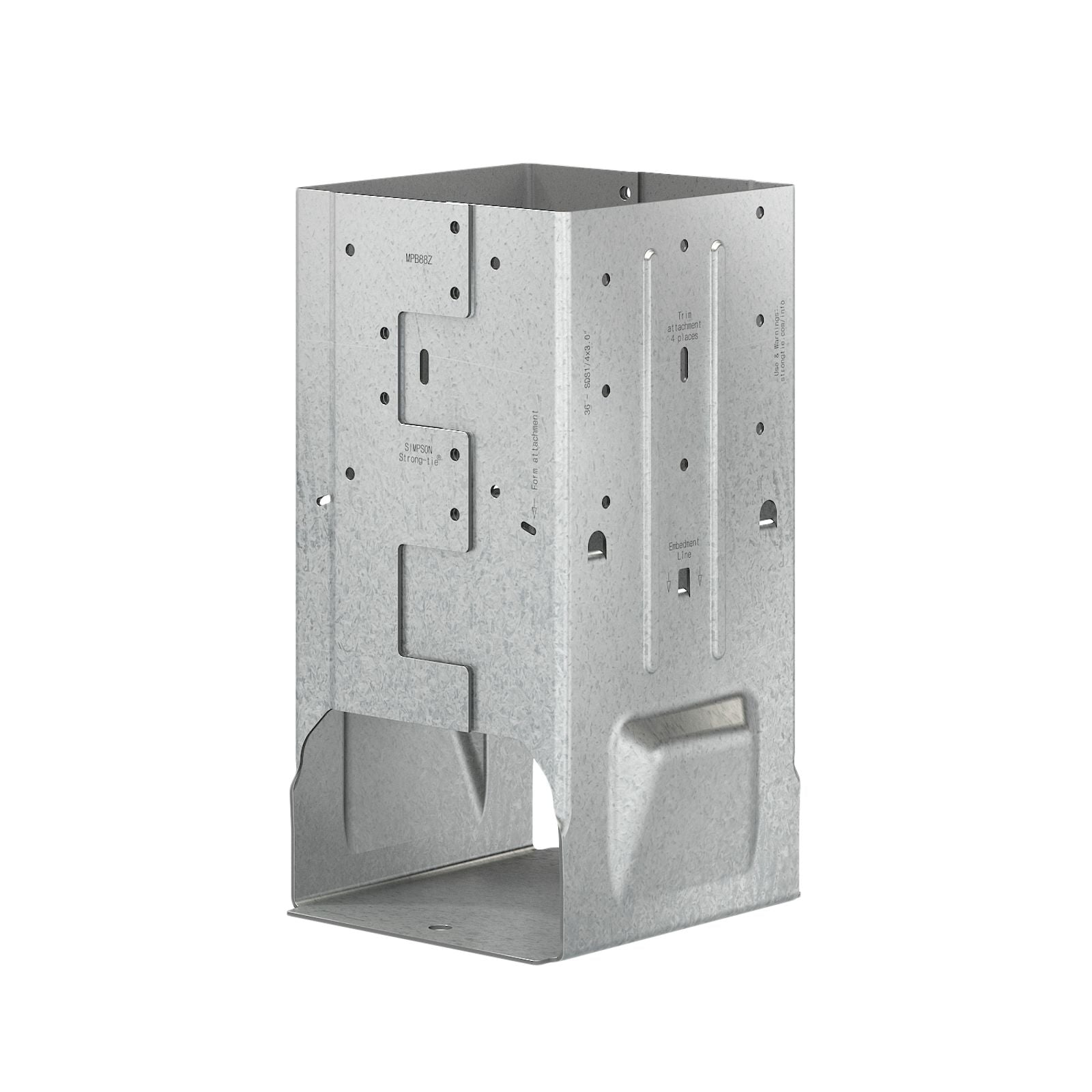

MPB88Z
DESIGN Wind and SDC A&BPatent-pending moment-resisting post base with overlapping sleeve design to resist rotation. Includes 1" standoff and ZMAX finish.
| Hanger Width | N/A" |
|---|---|
| Hanger Depth | 7 1/4" |
| Concrete Type | Nonreinforced |
| Nominal Column | 8x8 |
| W1 W2 | 7 9/16 |
| D | 7 1/4 |
| Fasteners Sds | (36) 1/4 x 3 |
| Uplift Uncracked | 11860 |
| Uplift Cracked | 9315 |
| Lateral F1 Uncracked | 7200 |
| Lateral F1 Cracked | 5560 |
| Moment Uncracked | 4160 |
| Moment Cracked | 2910 |
| Download 100 | 15120 |
| Download 160 | 17690 |
| Wood Moment 160 | 4560 |
| Rotational Stiffness | 5515000 |
