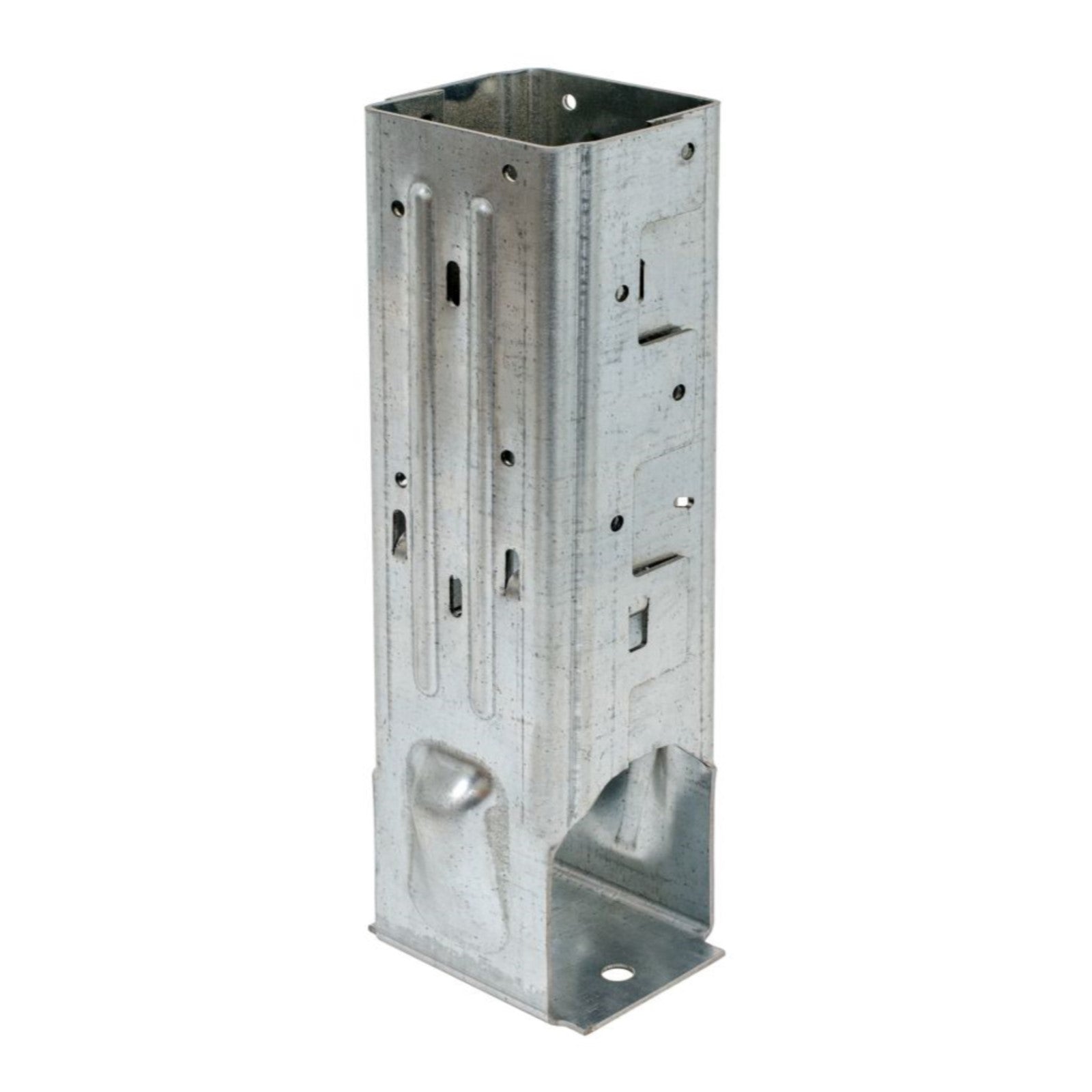

MPB44Z
DESIGN Wind and SDC A&BPatent-pending moment-resisting post base with overlapping sleeve design to resist rotation. Includes 1" standoff and ZMAX finish.
| Hanger Width | N/A" |
|---|---|
| Hanger Depth | 7 1/4" |
| Concrete Type | Nonreinforced |
| Nominal Column | 4x4 |
| W1 W2 | 3 9/16 |
| D | 7 1/4 |
| Fasteners Sds | (16) 1/4 x 2 1/2 |
| Uplift Uncracked | 4900 |
| Uplift Cracked | 3820 |
| Lateral F1 Uncracked | 1750 |
| Lateral F1 Cracked | 1225 |
| Moment Uncracked | 1350 |
| Moment Cracked | 945 |
| Download 100 | 6240 |
| Download 160 | 6410 |
| Wood Moment 160 | 1520 |
| Rotational Stiffness | 1245000 |
