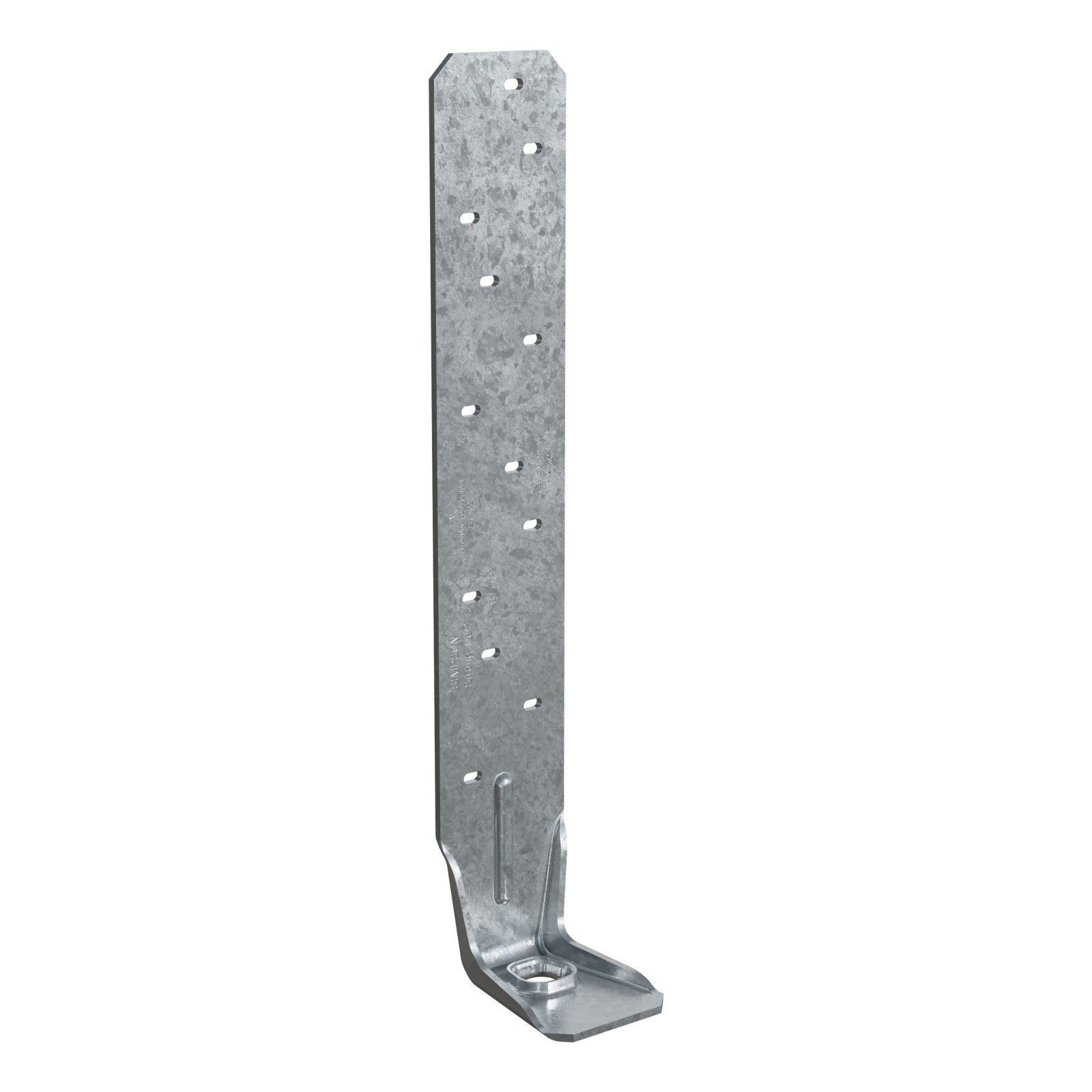

LTTP2

Tension Tie

Light tension tie designed for wood joist attachments to concrete or masonry walls. Extruded anchor bolt hole accommodates 1/2, 5/8, and 3/4 inch bolt diameters.

Hanger Width	N/A"
Hanger Depth	N/A"
Anchor Bolt Dia	1/2, 5/8, 3/4
Fasteners	(15) 0.148 x 2 1/2 Nails or (12) #9 x 1 1/2 SD Screws
Df Sp Tension (max Nails)	2275
Df Sp Tension (max Screws)	2570
Spf Hf Tension (max)	2230
