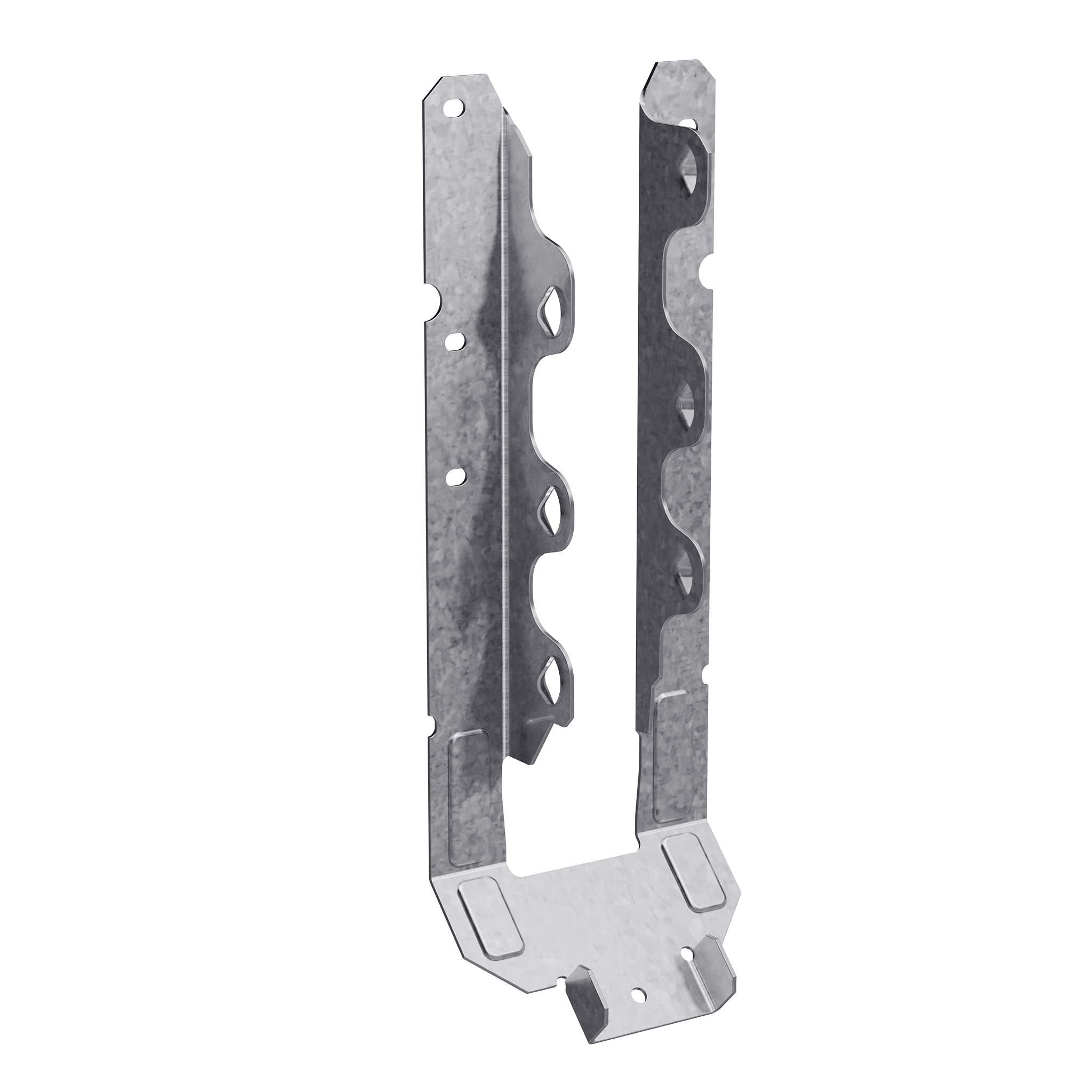

LRU210Z-1.5"-SD-SCREWS
Face-Mount Rafter HangerSloped hanger for rafter-to-ridge connections. Field-adjustable seat slopes down to 49 degrees (14:12 pitch) or up to 45 degrees. Can be installed before or after rafter is in place.
| Hanger Width | 1 9/16" |
|---|---|
| Hanger Depth | 8 3/16" |
| Joist | 2x10 |
| Ga | 18 |
| B | 1 15/16 |
| Fasteners Hdr | (6) #10 x 1 1/2 SD |
| Fasteners Jst | (7) #10 x 2 1/2 SD |
| Uplift | 1510 |
| Floor | 1570 |
| Snow | 1805 |
| Roof | 1805 |
