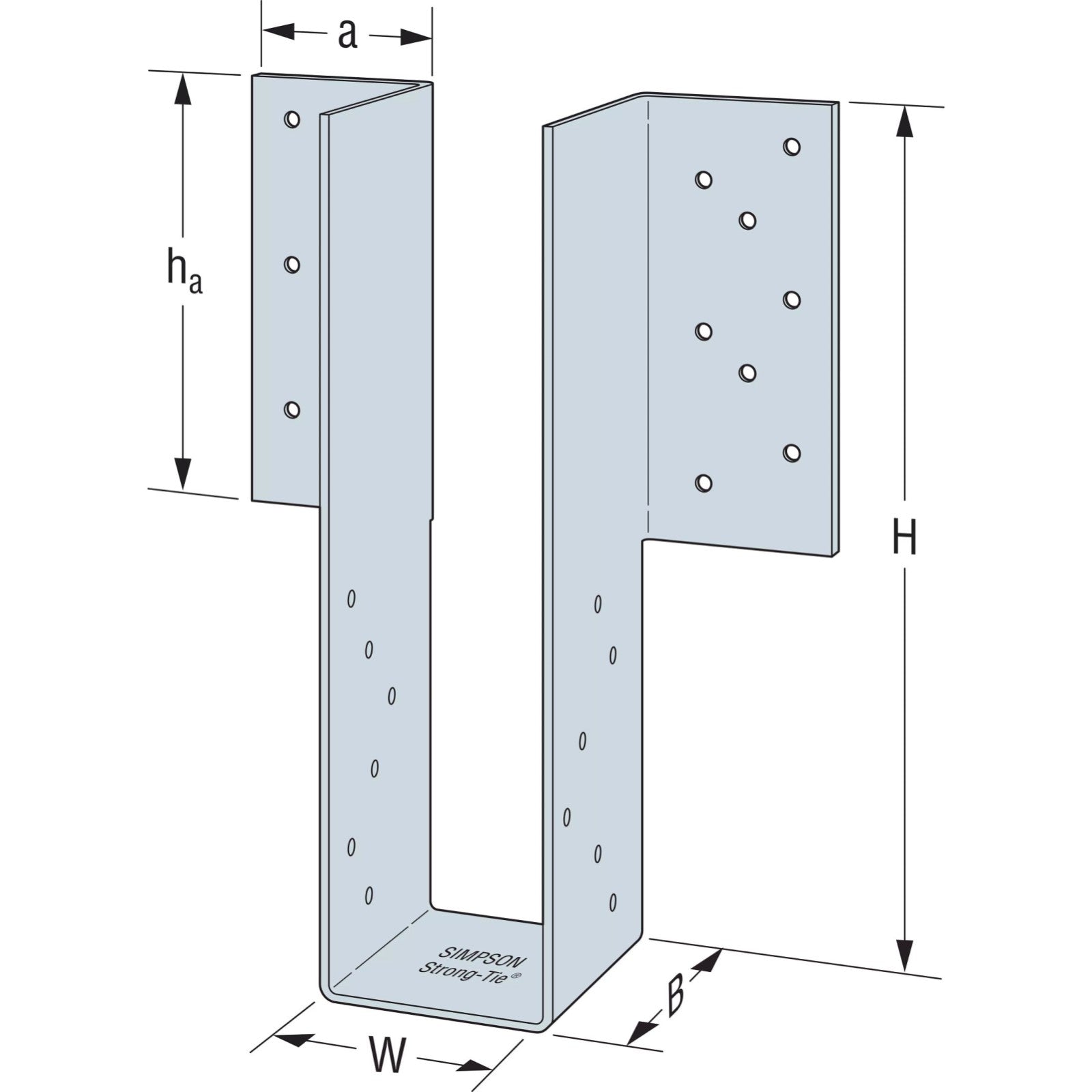

LGU3.25-SDS
Face-Mount Hanger (I-Joist / Glulam / SCL)Face-mount hangers specifically engineered or rated for I-Joists, Glulam, and Structural Composite Lumber (SCL). Verify web stiffener requirements prior to installation.
| Hanger Width | 3 1/4" |
|---|---|
| Hanger Depth | 8 to 30" |
| Ga | 10 |
| Joist Size | 3 1/8 glulam |
| I Joist Compatible | No |
| B | 4 1/2 |
| Fasteners Face | (16) 1/4 x 2 1/2 SDS |
| Fasteners Joist | (12) 1/4 x 2 1/2 SDS |
| Df Sp Uplift 160 | 5555 |
| Df Sp Floor 100 | 6720 |
| Df Sp Snow 115 | 7310 |
| Df Sp Roof 125 | 7310 |
| Spf Hf Floor 100 | 4840 |
| Spf Hf Snow 115 | 5265 |
| Spf Hf Roof 125 | 5265 |
