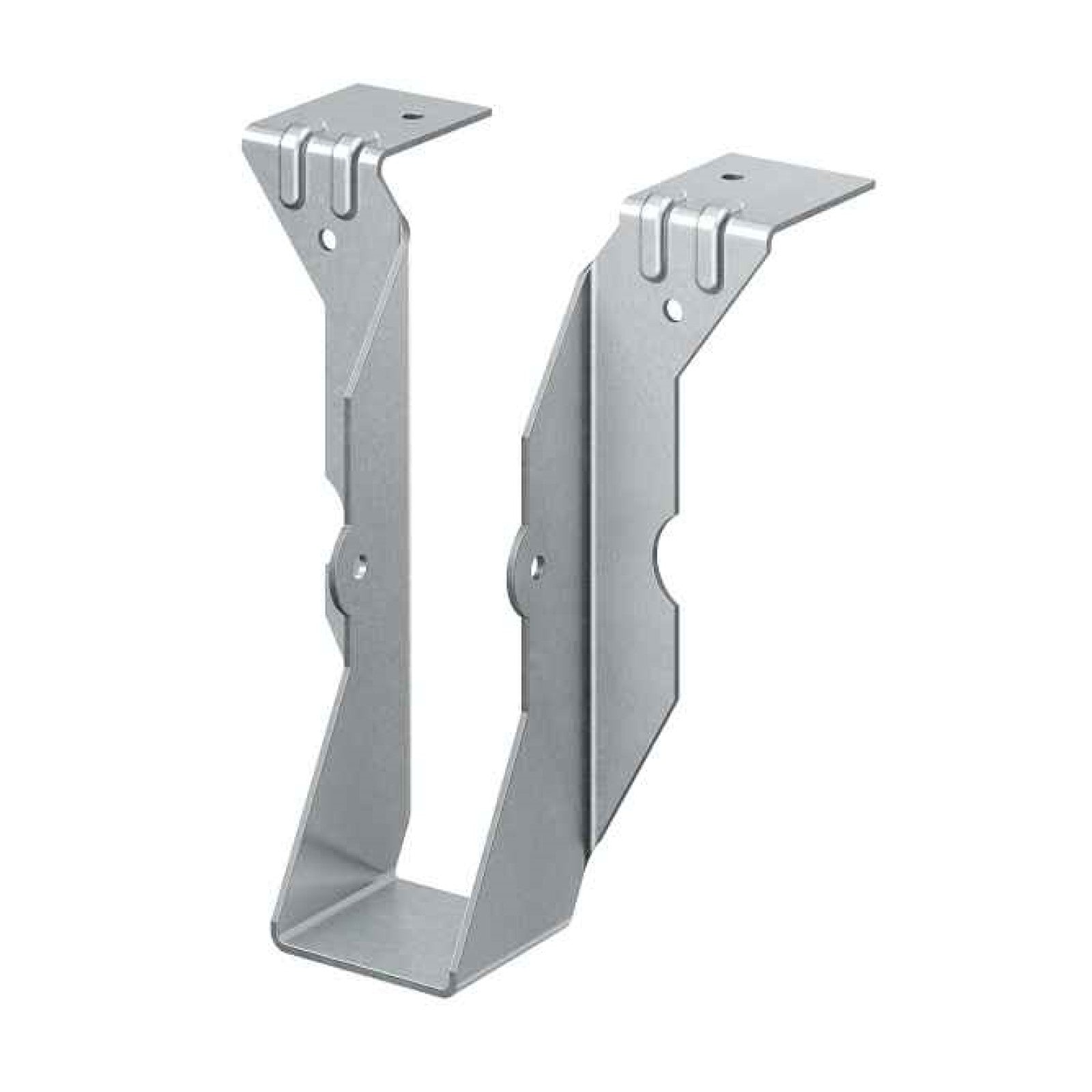

LB26
Top-Flange Hanger (Solid Sawn DF/SP)Top-flange hangers for solid sawn joists and purlins. Allowable loads are based on Douglas Fir-Larch (DF) or Southern Pine (SP) lumber.
| Hanger Width | 1 9/16" |
|---|---|
| Hanger Depth | 5 3/8" |
| Ga | 14 |
| B | 1 1/2 |
| Tf | 1 1/2 |
| Fasteners Hdr | (4) 0.162 x 3 1/2 |
| Fasteners Jst | (2) 0.148 x 1 1/2 |
| Uplift | 380 |
| Download Floor | 1135 |
| Download Snow | 1135 |
| Download Roof | 1135 |
| Ici | 117% |
