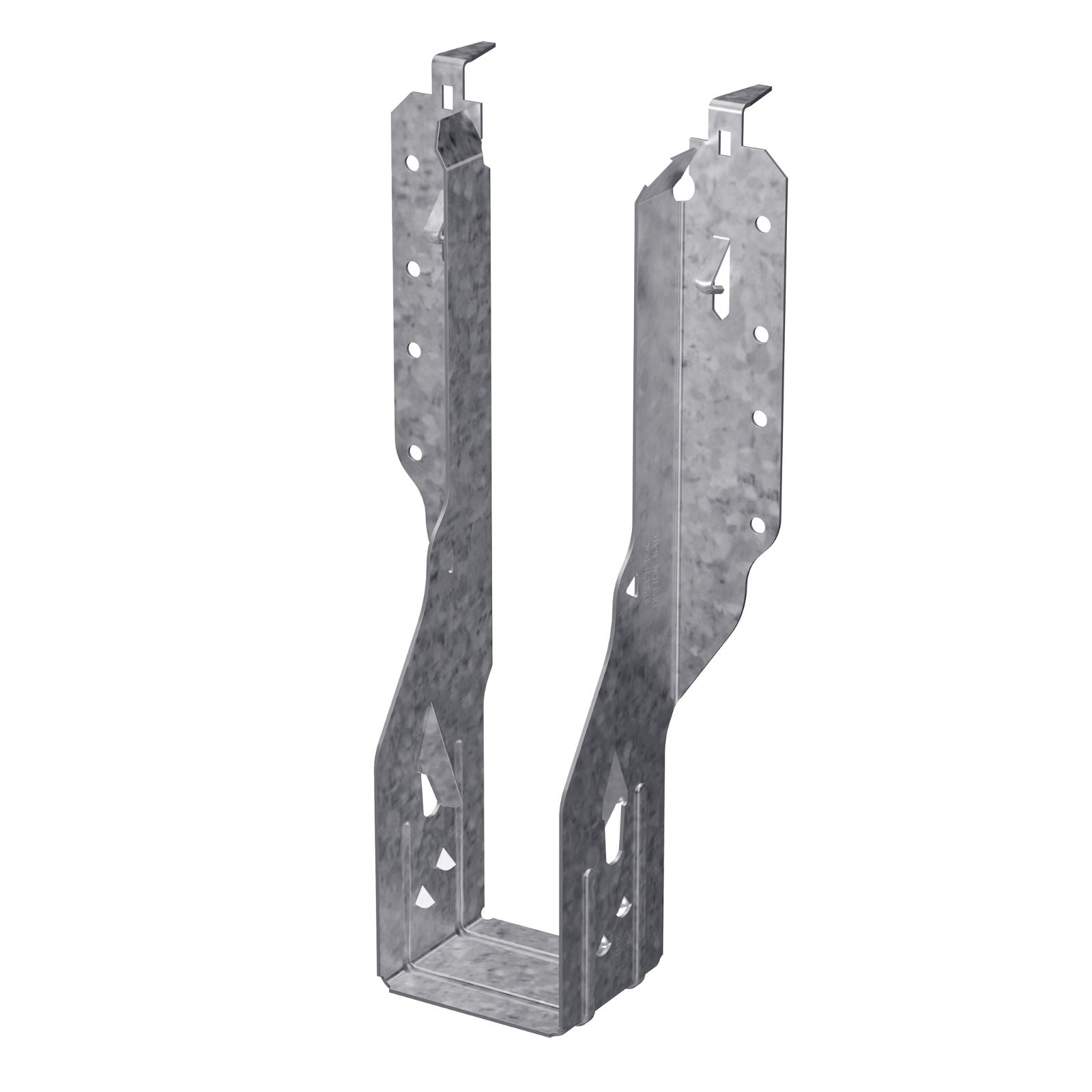

IUS1.81-9.5
Face-Mount Hanger (I-Joist / Glulam / SCL)Face-mount hangers specifically engineered or rated for I-Joists, Glulam, and Structural Composite Lumber (SCL). Verify web stiffener requirements prior to installation.
| Hanger Width | 1 7/8" |
|---|---|
| Hanger Depth | 9 1/2" |
| Ga | 18 |
| Joist Size | 1 3/4 x 9 1/2 |
| I Joist Compatible | Yes |
| Web Stiffener Reqd | No |
| B | 2 |
| Fasteners Face | (8) 0.148 x 3 |
| Df Sp Uplift 160 | 70 |
| Df Sp Floor 100 | 950 |
| Df Sp Snow 115 | 1080 |
| Df Sp Roof 125 | 1165 |
| Spf Hf Floor 100 | 815 |
| Spf Hf Snow 115 | 925 |
| Spf Hf Roof 125 | 1000 |
