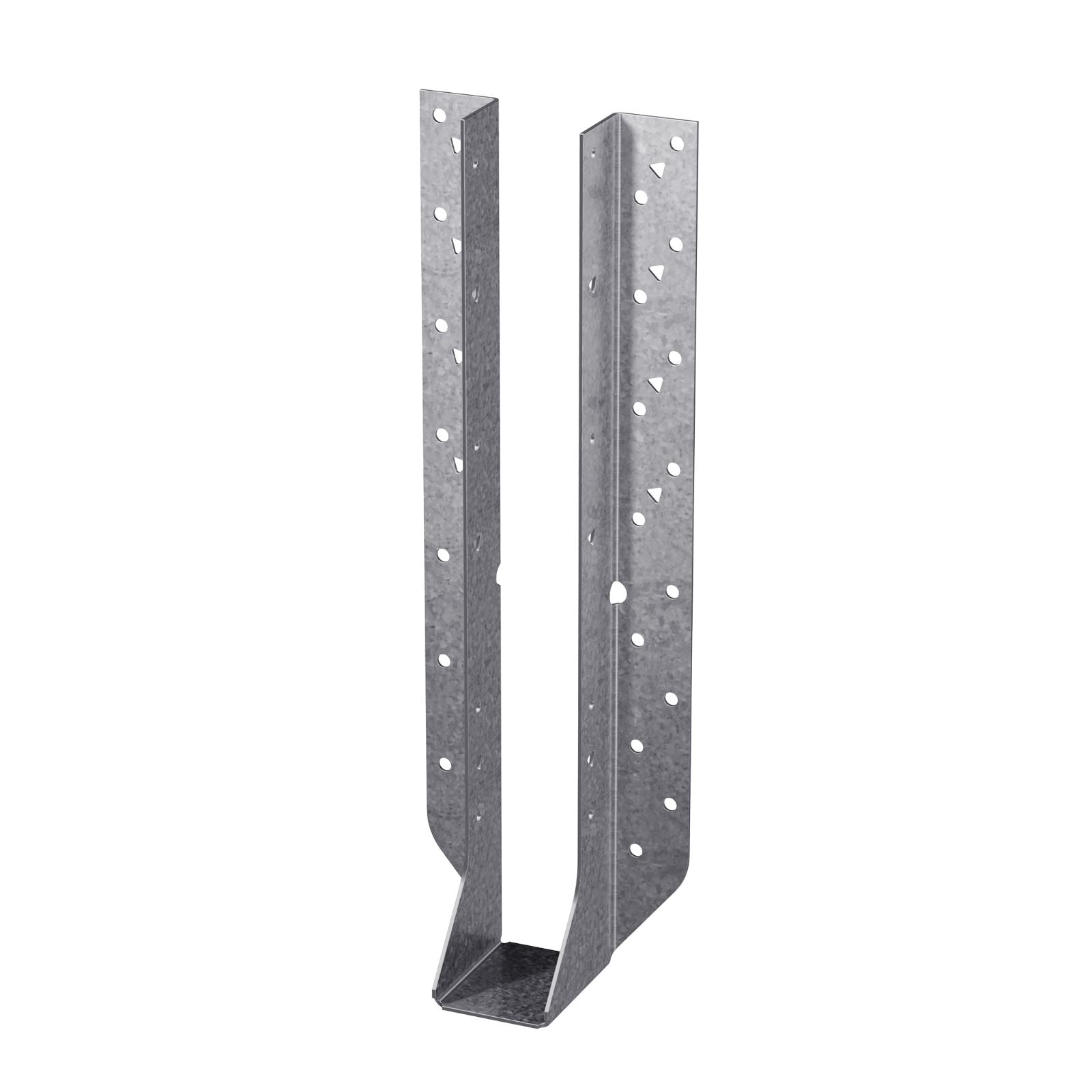

HU14-MIN-NAILING
Face-Mount Hanger (I-Joist / Glulam / SCL)Face-mount hangers specifically engineered or rated for I-Joists, Glulam, and Structural Composite Lumber (SCL). Verify web stiffener requirements prior to installation.
| Hanger Width | 1 13/16" |
|---|---|
| Hanger Depth | 13 11/16" |
| Ga | 14 |
| Joist Size | 1 3/4 x 14 |
| I Joist Compatible | Yes |
| Web Stiffener Reqd | Yes |
| B | 2 1/2 |
| Fasteners Face | (28) 0.162 x 3 1/2 |
| Fasteners Joist | (8) 0.148 x 1 1/2 |
| Df Sp Uplift 160 | 1515 |
| Df Sp Floor 100 | 4165 |
| Df Sp Snow 115 | 4420 |
| Df Sp Roof 125 | 4505 |
| Spf Hf Floor 100 | 3590 |
| Spf Hf Snow 115 | 4050 |
| Spf Hf Roof 125 | 4335 |
