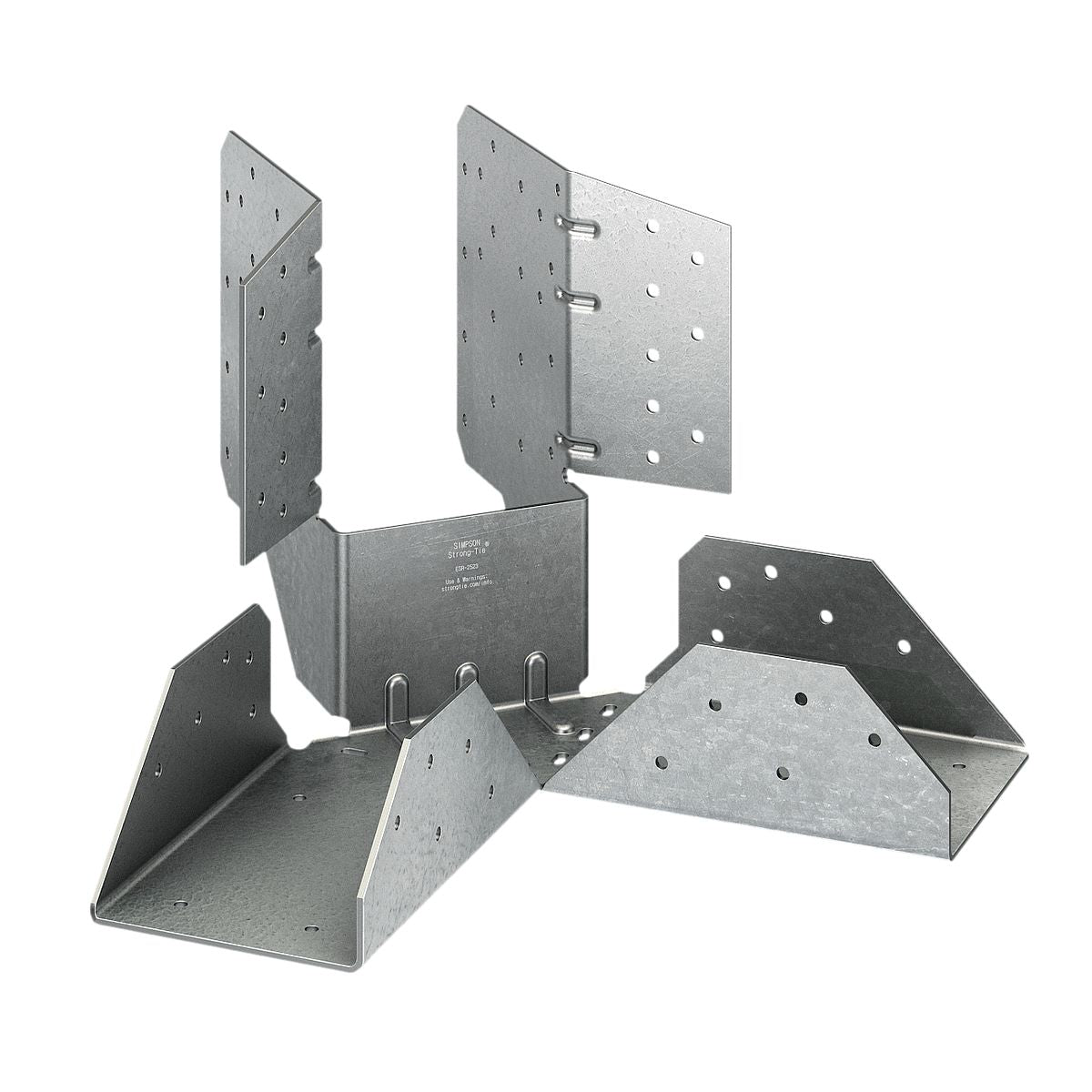

HHRC5.37-3.56
Hip-Ridge Face-Mount ConnectorAttaches hip roof beams to the end of a ridge beam. HRC may be sloped downward a maximum of 45 degrees. HHRC accommodates higher loads.
| Hanger Width | 5 3/8" |
|---|---|
| Hanger Depth | -" |
| Joist | 5 1/4 SCL to 3 1/2 SCL |
| Ga | 12 |
| B | 3 5/8 |
| Fasteners Hdr | (40) #10 x 2 1/2 SD |
| Fasteners Jst | (22) #10 x 2 1/2 SD |
| Uplift | 1970 |
| Floor | 3110 |
| Snow | 3110 |
| Roof | 3110 |
