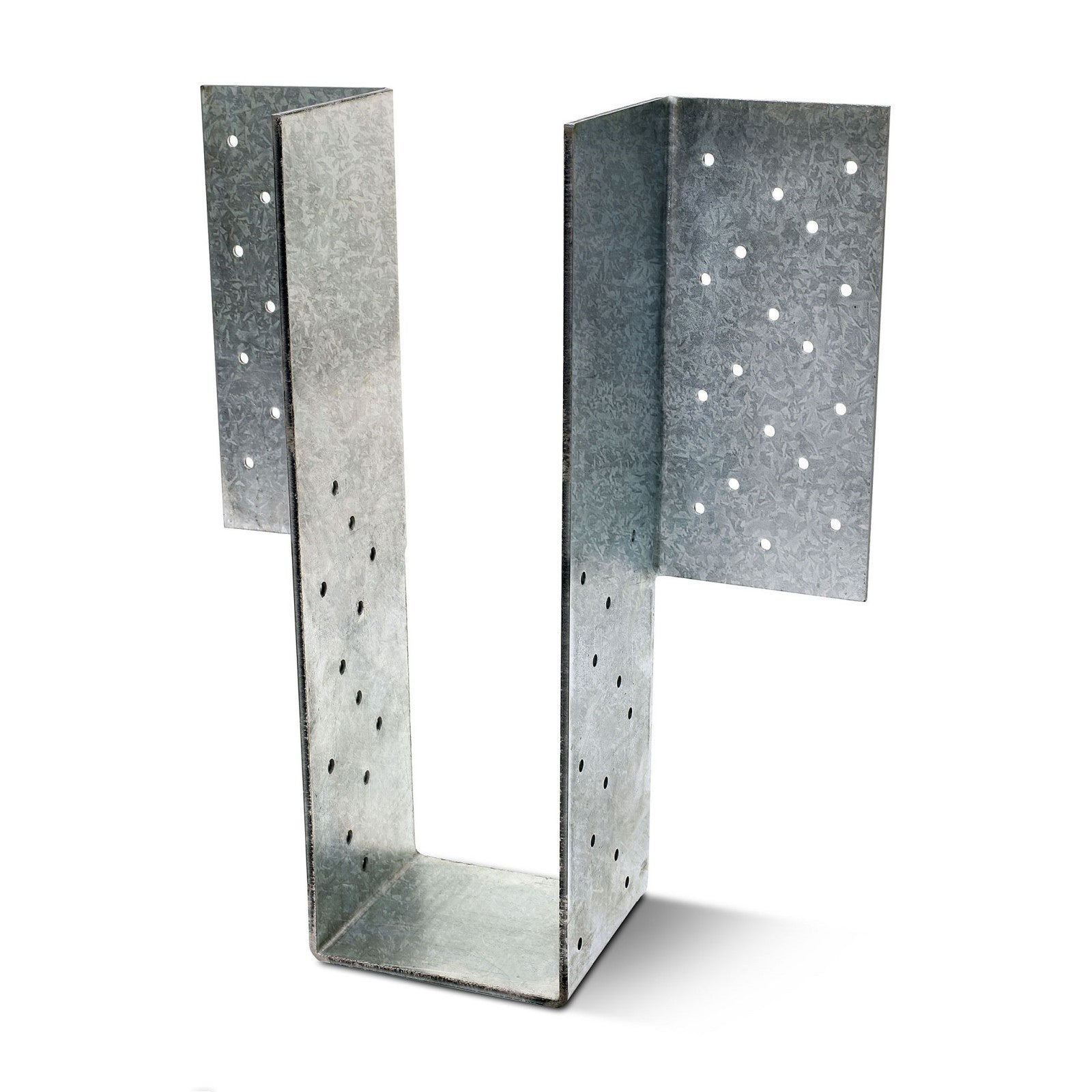

HGU11.00-SDS
High-Capacity Girder Hanger (LGU/MGU/HGU/HHGU)High-capacity face-mount hangers utilizing 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws. Can be used for retrofit installations.
| Hanger Width | 11" |
|---|---|
| Hanger Depth | N/A" |
| Actual Beam Width | 10 3/4 |
| Ga | 7 |
| H Min | 11 |
| H Max | 30 |
| B | 5 1/4 |
| Ha | 10 3/8 |
| A | 4 11/16 |
| Fasteners Face | (36) 1/4" x 2 1/2" SDS |
| Fasteners Joist | (24) 1/4" x 2 1/2" SDS |
| Df Sp Uplift 160 | 9460 |
| Df Sp Download 100 | 13160 |
| Df Sp Download 115 125 | 13160 |
| Spf Hf Uplift 160 | 8135 |
| Spf Hf Download 100 | 10800 |
| Spf Hf Download 115 125 | 10800 |
