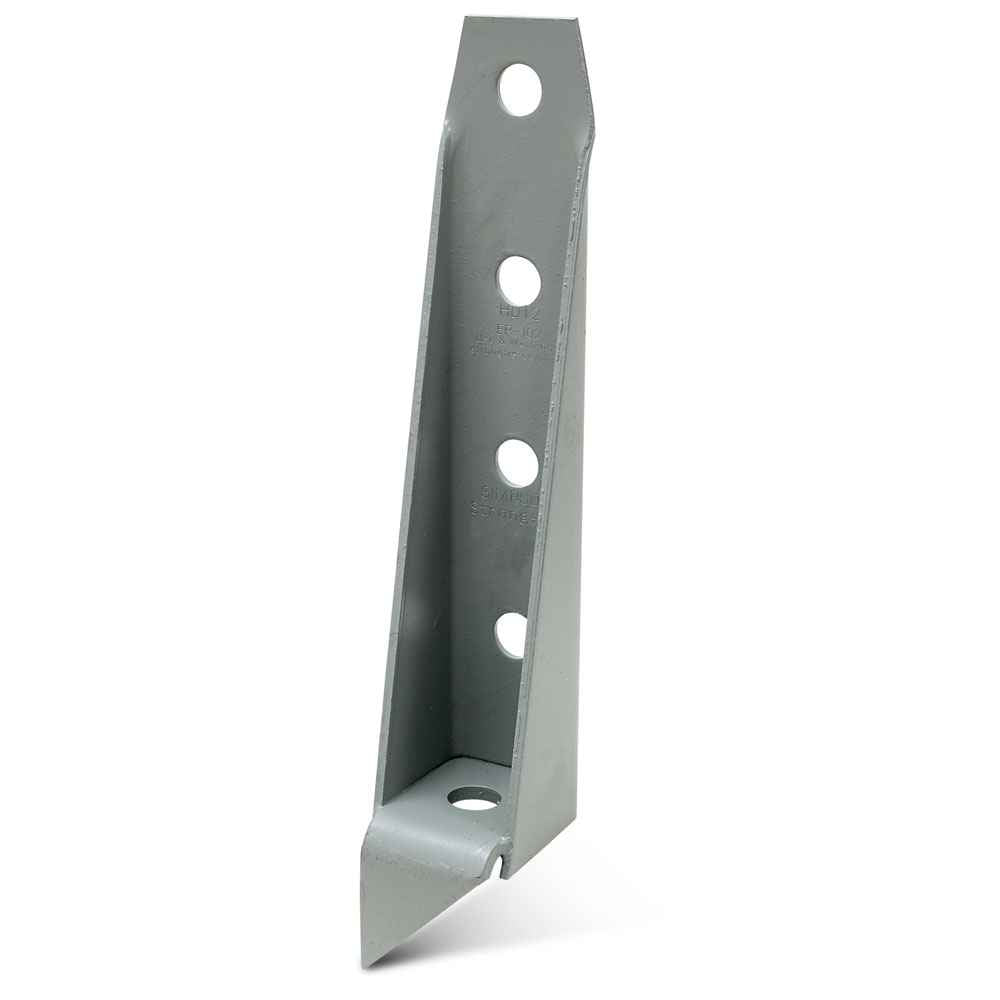

HD12

Holdown

High-capacity bolted holdown. Self-jigging ensures minimum bolt end distance. Requires standard-cut washer under the anchor nut.

Hanger Width	N/A"
Hanger Depth	N/A"
Anchor Bolt Dia	1 or 1 1/8
Fasteners	(4) 1 Stud Bolts
Df Sp Uplift (max)	15510
Spf Hf Uplift (max)	13185
