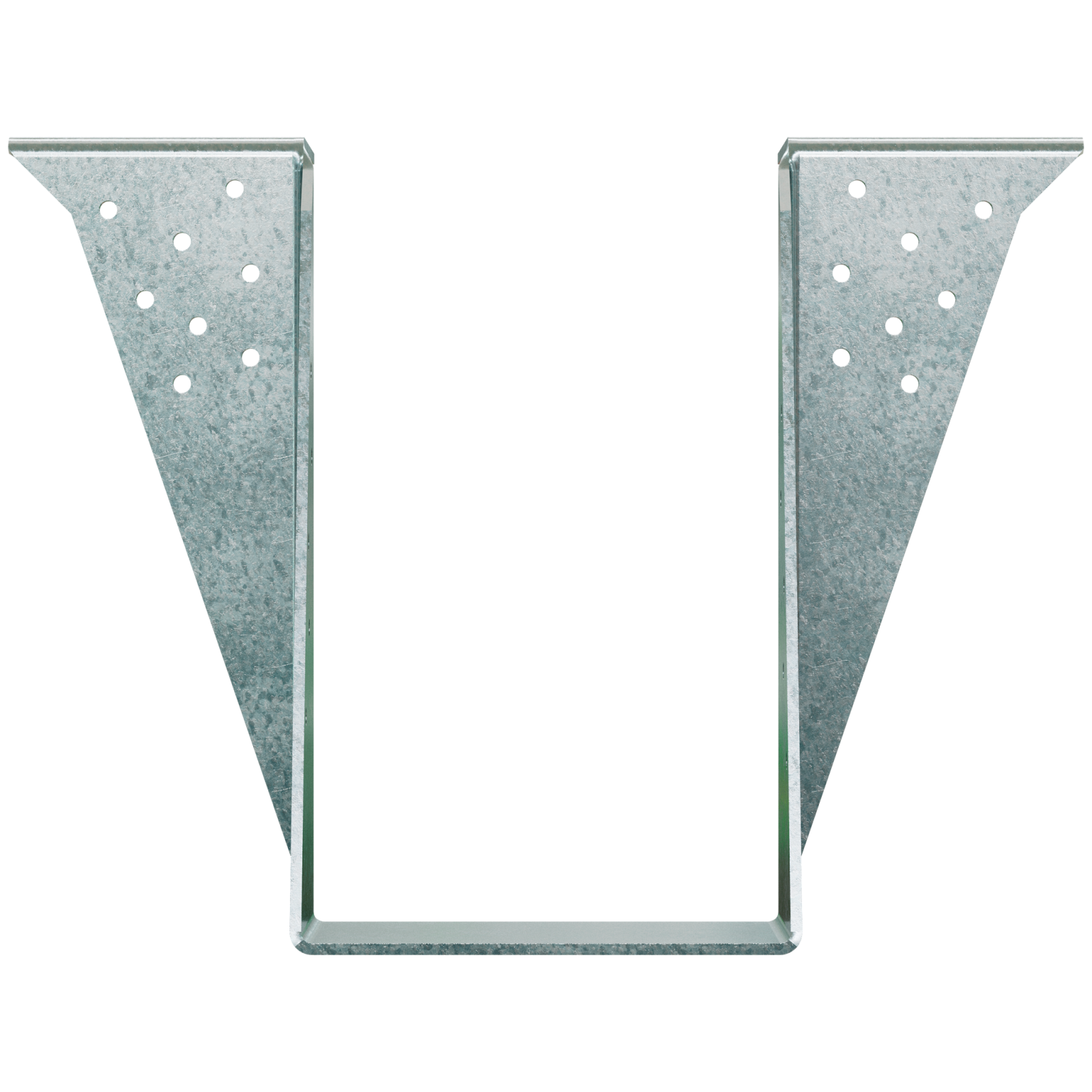

HB616
Top-Flange Hanger (Solid Sawn DF/SP)Top-flange hangers for solid sawn joists and purlins. Allowable loads are based on Douglas Fir-Larch (DF) or Southern Pine (SP) lumber.
| Hanger Width | 5 9/16" |
|---|---|
| Hanger Depth | 15" |
| Ga | 10 |
| B | 3 1/2 |
| Tf | 3 |
| Fasteners Hdr | (22) 0.162 x 3 1/2 |
| Fasteners Jst | (10) 0.162 x 3 1/2 |
| Uplift | 2075 |
| Download Floor | 5395 |
| Download Snow | 5395 |
| Download Roof | 5395 |
| Ici | * |
