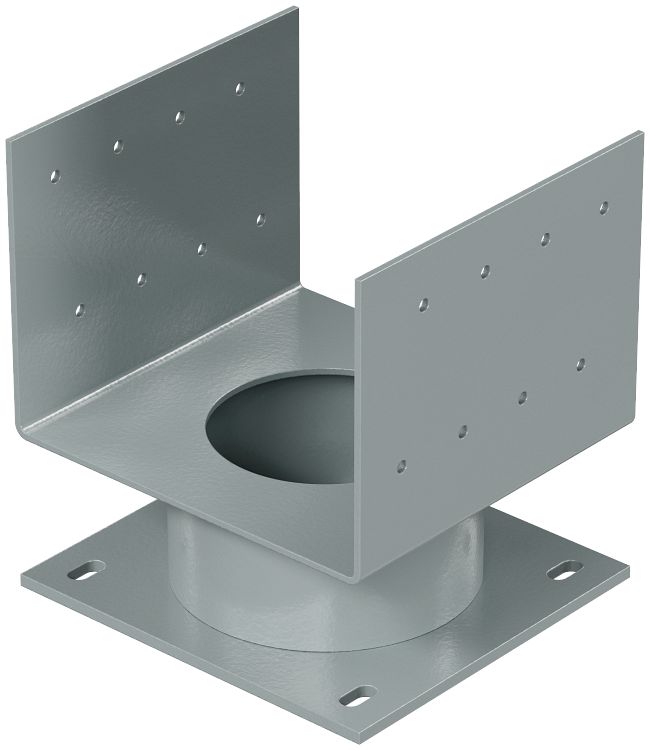

ECB66
Elevated Column Base (ECB)Elevated column base with 2" standoff for hollow columns or solid-sawn posts. Designed to allow for waterproofing and moisture barriers on stacked balconies.
| Hanger Width | 5 1/2" |
|---|---|
| Hanger Depth | 6 1/4" |
| Nominal Column | 6x6 |
| L | 5 1/4 |
| Fasteners Anchor Center | (1) 1/2 |
| Fasteners Anchor Corner | (4) 1/4 |
| Fasteners Post | (16) 0.148 x 1.5 nails |
| Uplift To Concrete 160 | 2125 |
| Uplift To Wood 160 | 1920 |
| Download Over Concrete | 12780 |
| Download Over Df Sp | 8495 |
| Download Over Spf Hf | 6390 |
