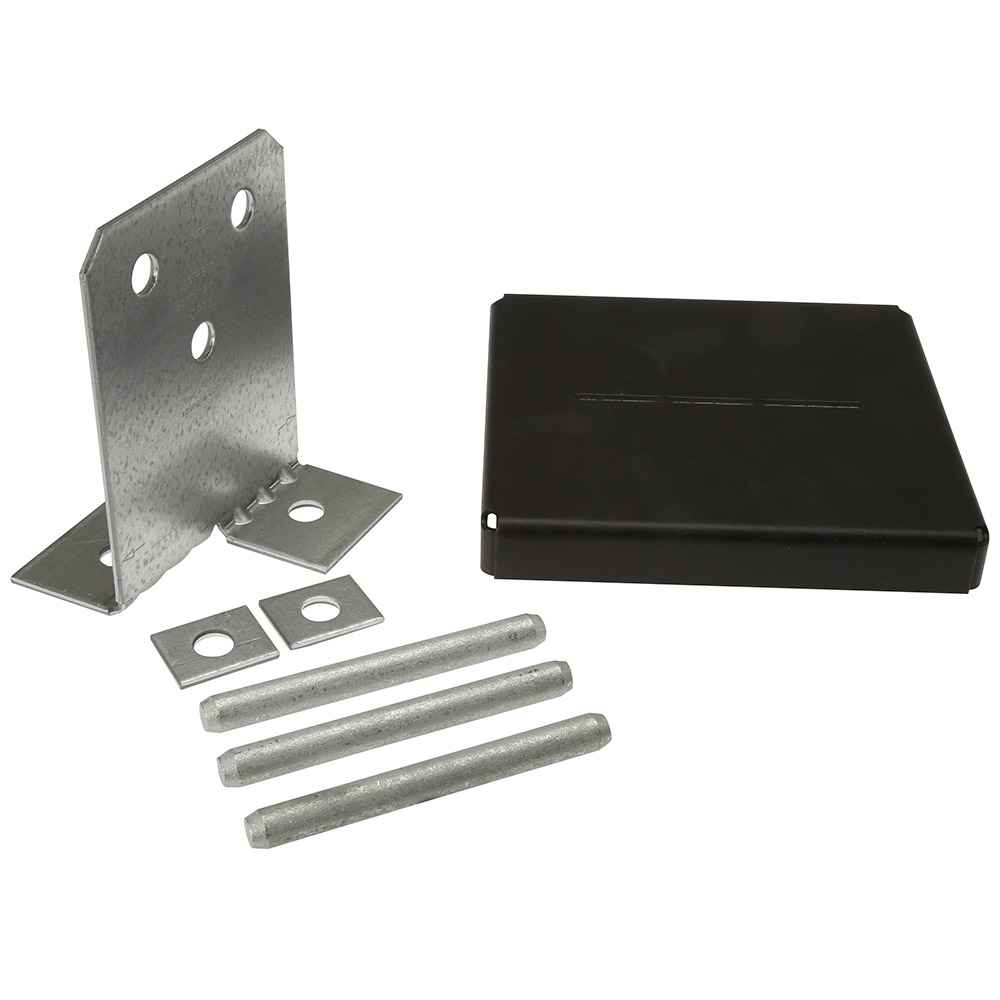

CPT88Z
Concealed Post Tie (CPTZ)Concealed post base providing a 1" standoff. Installed via a knife plate slotted into the post base and secured with dowel pins or bolts. Solutions calculated per ACI 318.
| Hanger Width | 7 1/4" |
|---|---|
| Hanger Depth | N/A" |
| Nominal Post Size | 8x8 |
| Ga Base | 12 |
| Ga Knife Plate | 10 |
| L | 7 1/4 |
| Fasteners Anchor | (2) 1/2" dia |
| Fasteners Post | (3) 1/2" x 4 3/4" dowel |
| Df Sp Uplift 160 | 3315 |
| Df Sp Down 100 | 22805 |
| Df Sp F1 160 | 740 |
| Df Sp F2 160 | 1080 |
