CPT44Z

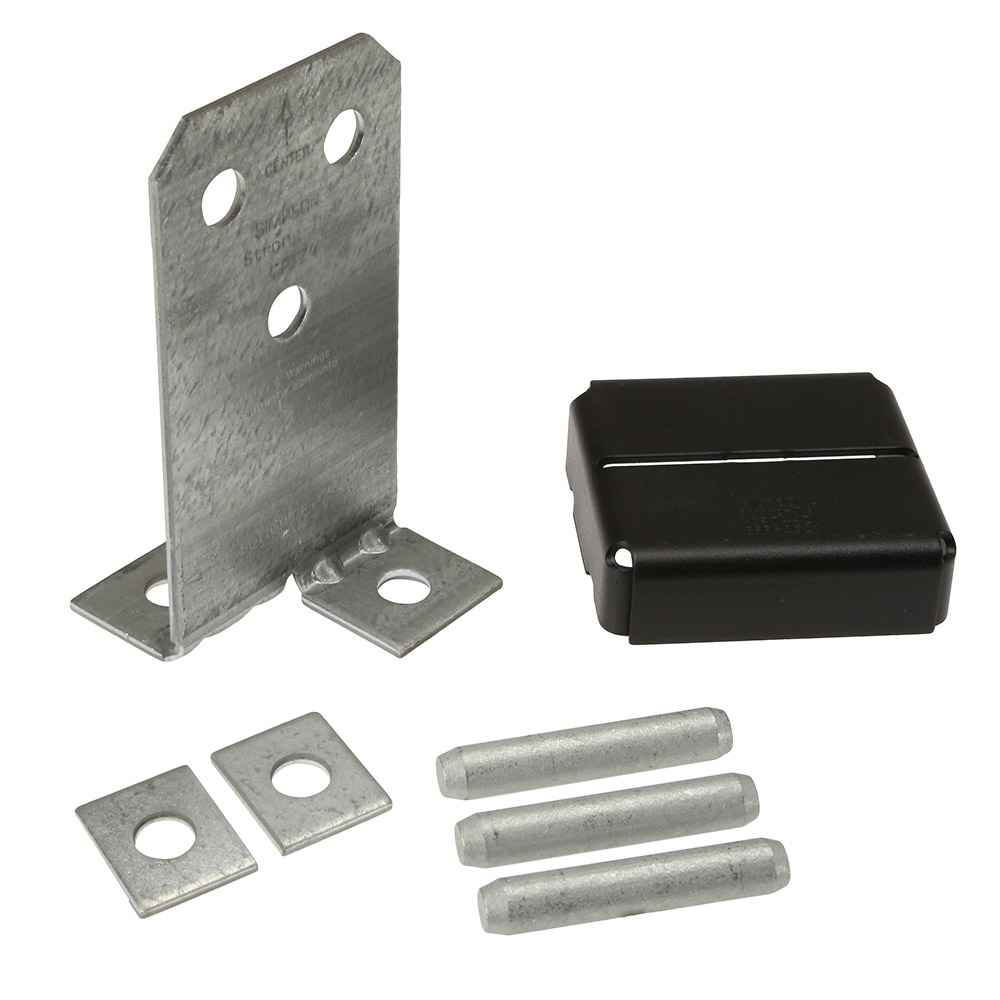

Concealed Post Tie (CPTZ)Concealed post base providing a 1" standoff. Installed via a knife plate slotted into the post base and secured with dowel pins or bolts. Solutions calculated per ACI 318.
| Hanger Width | 3 1/2" |
|---|---|
| Hanger Depth | N/A" |
| Nominal Post Size | 4x4 |
| Ga Base | 12 |
| Ga Knife Plate | 10 |
| L | 3 1/2 |
| Fasteners Anchor | (2) 1/2" dia |
| Fasteners Post | (3) 1/2" x 2 3/4" dowel |
| Df Sp Uplift 160 | 3035 |
| Df Sp Down 100 | 11455 |
| Df Sp F1 160 | 600 |
| Df Sp F2 160 | 605 |
