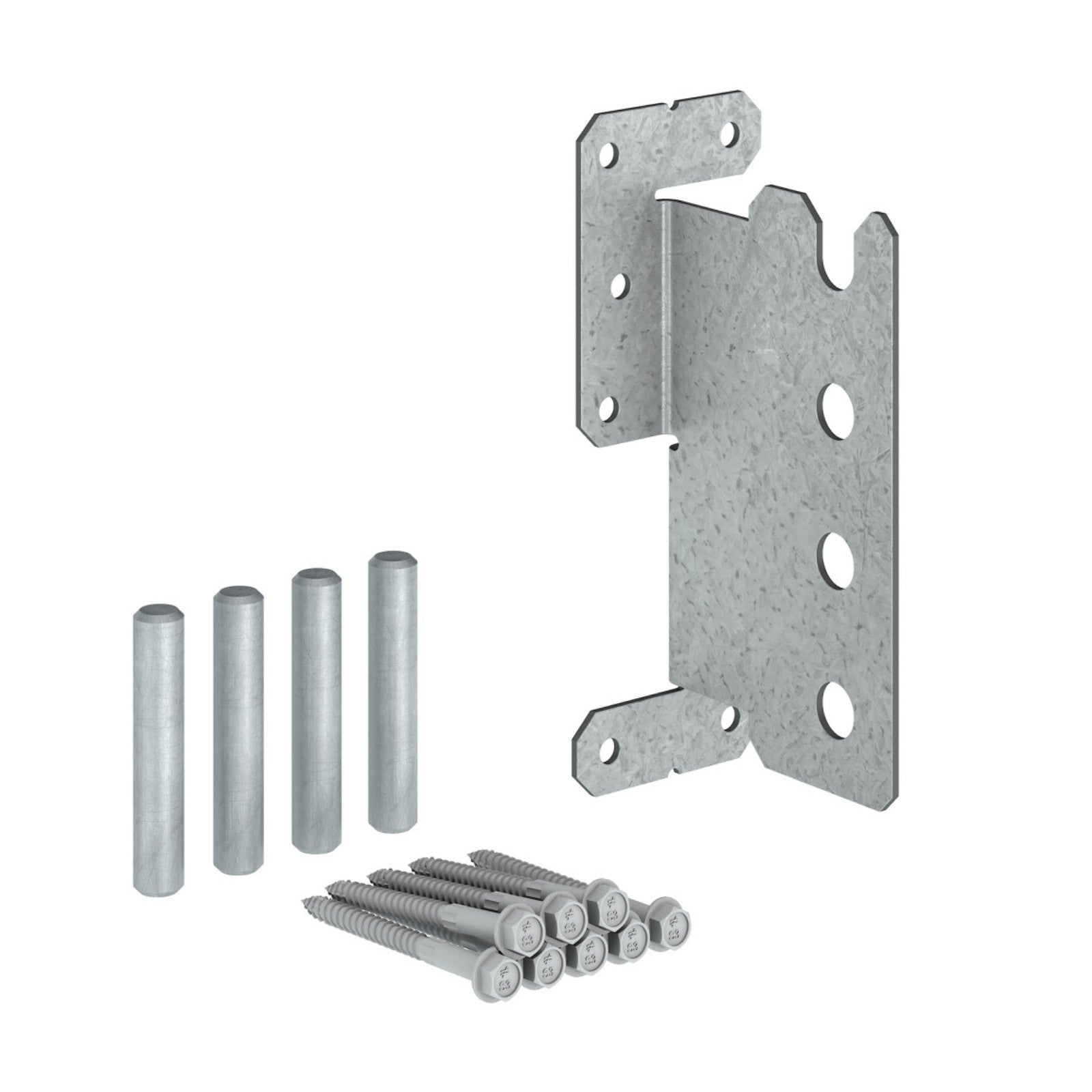

CJT4Z
Concealed Joist TieHidden/concealed connector for aesthetic or architectural applications. Can be installed with no routing, routed header/post, or routed beam. Uses dowel pins and Strong-Drive SDS screws. Carried member can be sloped up or down to 45 degrees.
| Hanger Width | N/A" |
|---|---|
| Hanger Depth | N/A" |
| Material | Douglas Fir-Larch |
| Joist | 4x10 |
| Ga | 12 |
| H1 | 7 |
| H2 | 5 15/16 |
| Fasteners Hdr | (8) 1/4" x 3" SDS |
| Fasteners Jst | (4) 1/2" pins |
| Uplift | 2625 |
| Floor | 2970 |
| Snow | 2970 |
| Roof | 2970 |
