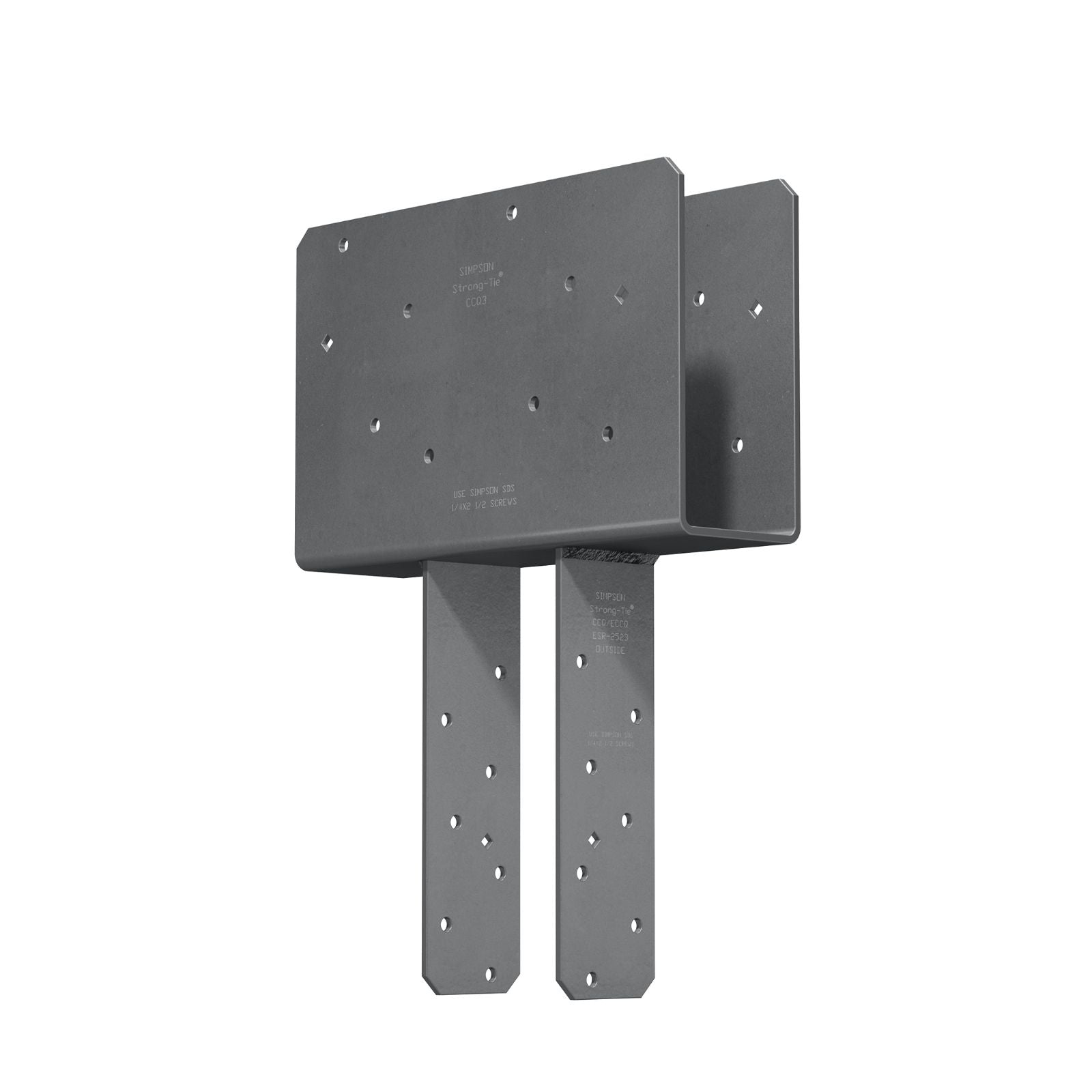

CCQ3-4SDS2.5
Heavy-Duty Column Cap (CCQ)Heavy-duty column cap using SDS screws for greater net section area. CCQ = Continuous, ECCQ = End condition.
| Hanger Width | N/A" |
|---|---|
| Hanger Depth | 8 1/2" |
| Weldable Model | CCOQ3-SDS2.5 |
| Beam Width | 3 1/8 |
| W1 | 3 1/4 |
| W2 | 3 5/8 |
| L | 11 |
| Ga | 7 |
| Fasteners Beam | (16) 1/4 x 2 1/2 SDS |
| Fasteners Post | (14) 1/4 x 2 1/2 SDS |
| Ccq Uplift 160 | 5370 |
| Ccq Down 100 | 16980 |
| Eccq Uplift 160 | 3465 |
| Eccq Down 100 | 6125 |
