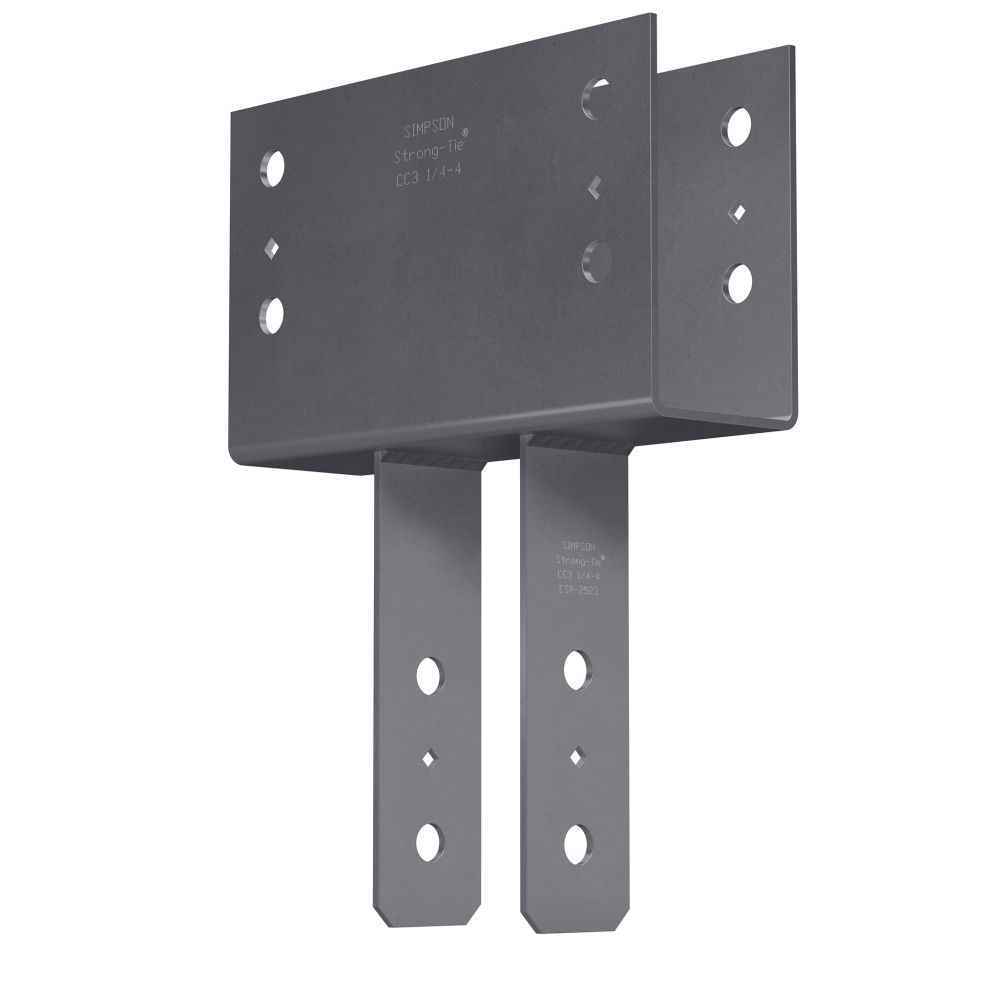

CC3-1-4-4
Heavy-Duty Column Cap (CC)Heavy-duty column cap using through-bolts. CC = Continuous, ECC = End condition, ECCU = End U-shape (no post straps).
| Hanger Width | N/A" |
|---|---|
| Hanger Depth | N/A" |
| Weldable Model | CCO3 1/4 |
| Beam Width | 3 1/8 |
| W1 | 3 1/4 |
| W2 | 3 5/8 |
| L | 11 |
| H1 | 7 1/2 |
| Bolt Dia | 5/8 |
| Bolts Beam Cc | 4 |
| Bolts Post Cc | 2 |
| Bolts Beam Ecc | 4 |
| Bolts Post Ecc | 2 |
| Cc Uplift 160 | 3150 |
| Cc Down 100 | 16980 |
| Ecc Uplift 160 | 3150 |
| Ecc Down 100 | 6835 |
| Eccu Down 100 | 6835 |
