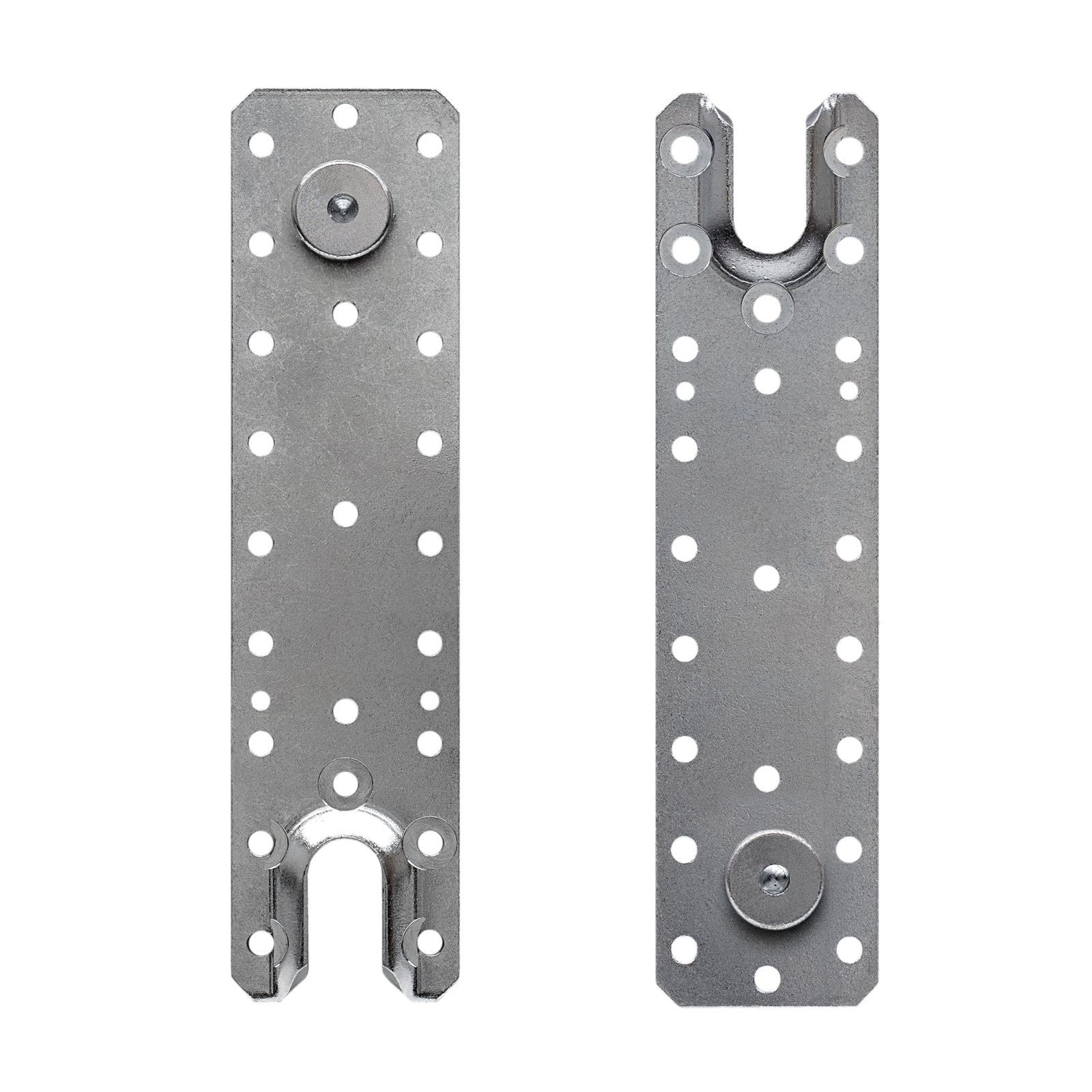

CBH2.37X7.63
Concealed Beam Hanger (End Grain)End-grain concealed beam hangers. Backplates slide together for fast assembly. Provides a wood-only aesthetic and tested fire resistance. CBH is steel; ACBH is aluminum; SCBH is steel.
| Hanger Width | 2 3/8" |
|---|---|
| Hanger Depth | 7 5/8" |
| Configuration | Beam to Beam |
| Fasteners Supported Beam | (18) SDS25600 |
| Fasteners Supporting Beam | (18) SDS25300 |
| Df Sp Floor 100 | 6790 |
| Df Sp Snow 115 | 6790 |
| Df Sp Roof 125 | 6790 |
| Spf Hf Floor 100 | 5400 |
| Spf Hf Snow 115 | 5815 |
| Spf Hf Roof 125 | 5815 |
