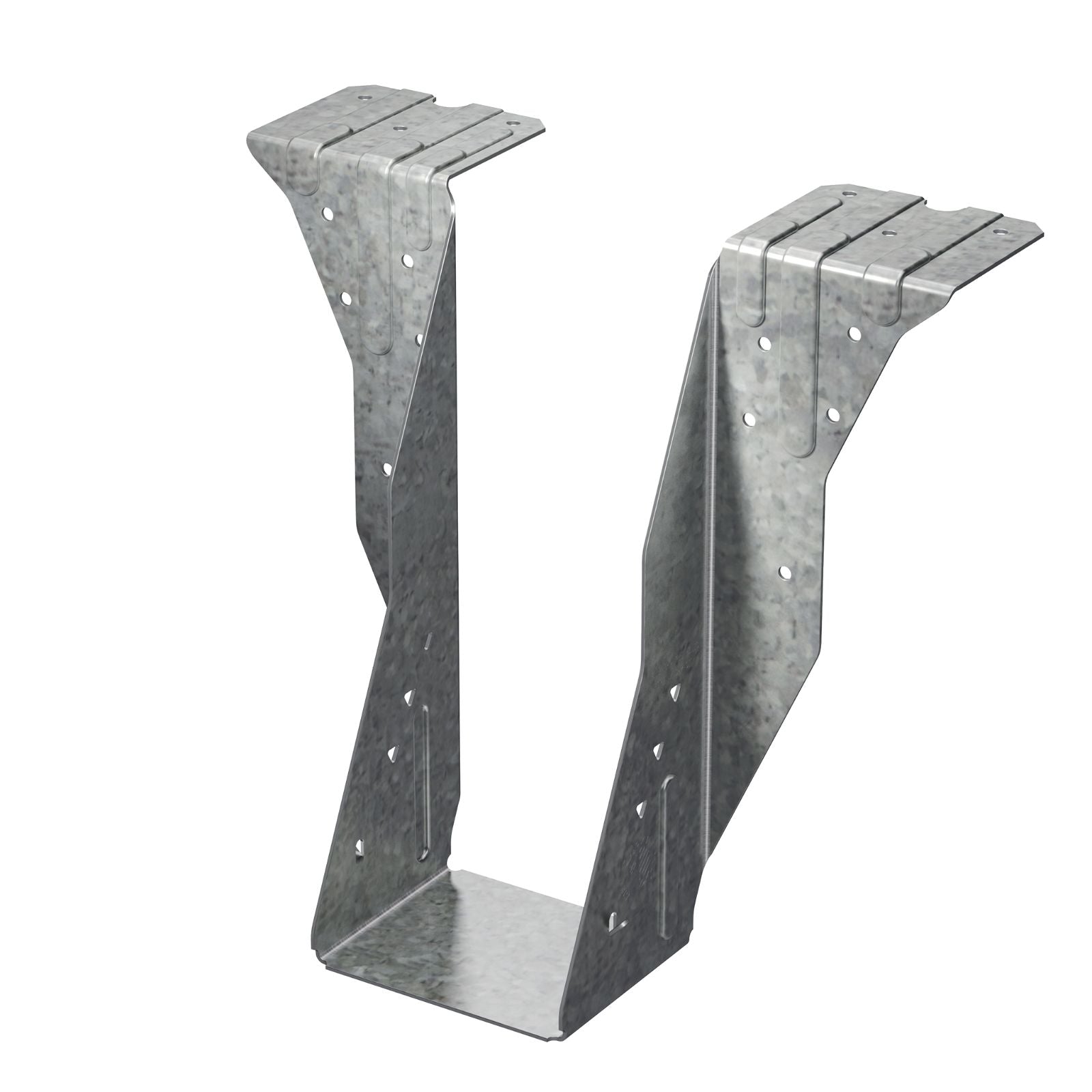

BA410-MAX.

Top-Flange Hanger (Solid Sawn DF/SP)

Top-flange hangers for solid sawn joists and purlins. Allowable loads are based on Douglas Fir-Larch (DF) or Southern Pine (SP) lumber.

Hanger Width	3 9/16"
Hanger Depth	9 1/8"
Ga	14
B	3
Tf	2 1/2
Fasteners Hdr	(16) 0.162 x 3 1/2
Fasteners Jst	(8) 0.148 x 1 1/2
Uplift	1275
Download Floor	4720
Download Snow	4720
Download Roof	4720
Ici	7%
