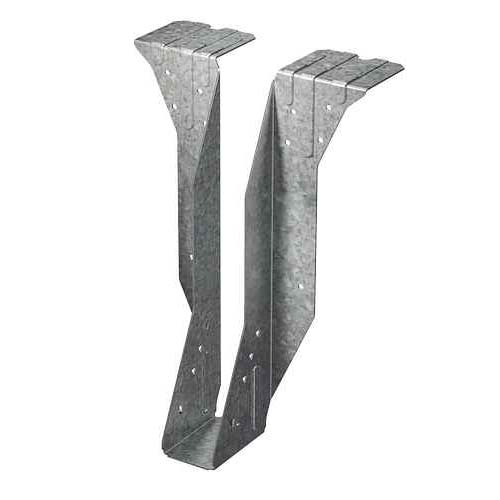

BA214-MAX.
Top-Flange Hanger (Solid Sawn DF/SP)Top-flange hangers for solid sawn joists and purlins. Allowable loads are based on Douglas Fir-Larch (DF) or Southern Pine (SP) lumber.
| Hanger Width | 1 9/16" |
|---|---|
| Hanger Depth | 13 1/16" |
| Ga | 12 |
| B | 3 |
| Tf | 2 1/2 |
| Fasteners Hdr | (16) 0.162 x 3 1/2 |
| Fasteners Jst | (8) 0.148 x 1 1/2 |
| Uplift | 1275 |
| Download Floor | 4720 |
| Download Snow | 4720 |
| Download Roof | 4720 |
| Ici | * |
