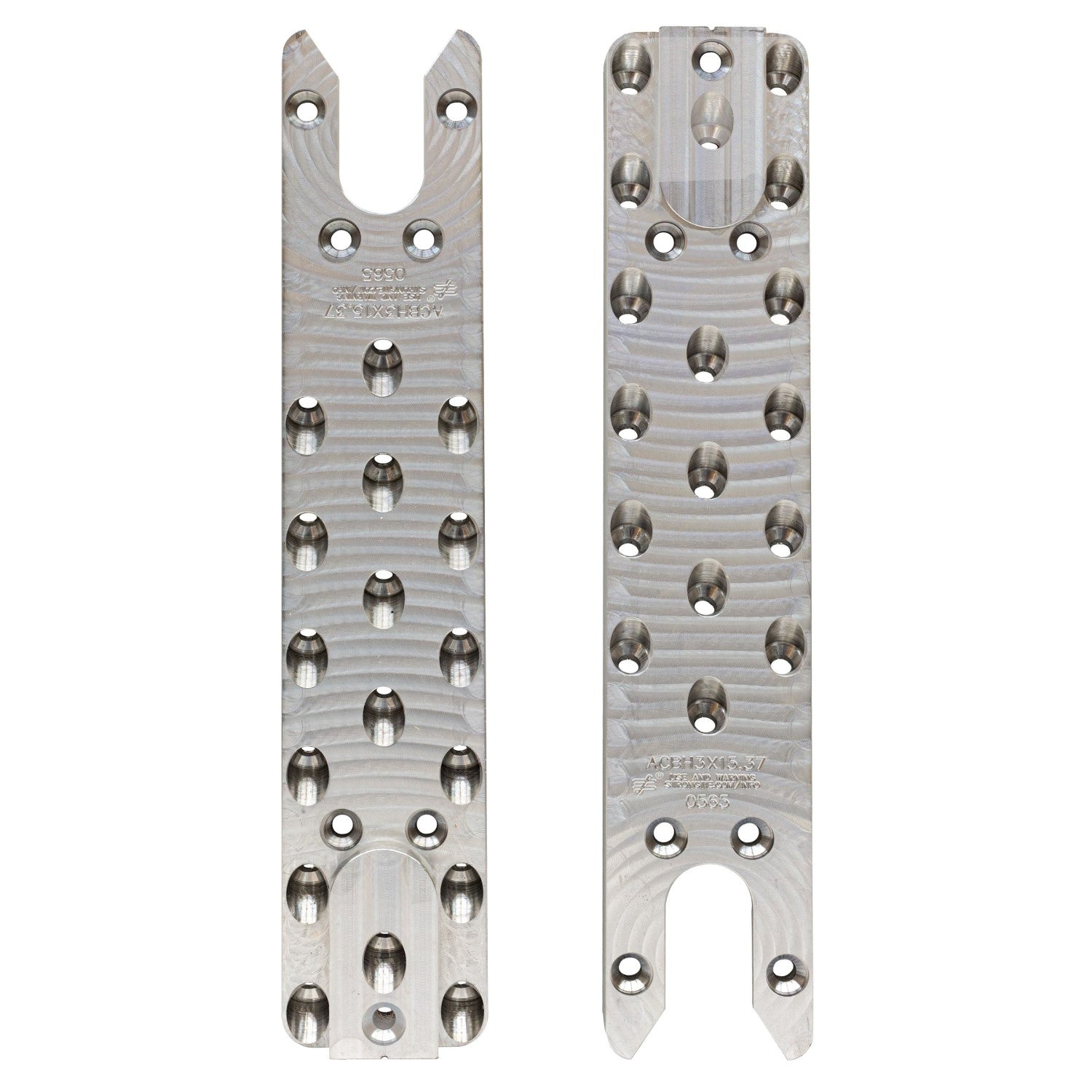

ACBH3X15.37
Concealed Beam Hanger (End Grain)End-grain concealed beam hangers. Backplates slide together for fast assembly. Provides a wood-only aesthetic and tested fire resistance. CBH is steel; ACBH is aluminum; SCBH is steel.
| Hanger Width | 3" |
|---|---|
| Hanger Depth | 15 3/8" |
| Configuration | Beam to Column |
| Fasteners Supported Beam | (24) SDCF8x160 |
| Fasteners Supporting Beam | (7) SDCF8x120 / (17) SDCF8x120 |
| Df Sp Floor 100 | 19870 |
| Df Sp Snow 115 | 20875 |
| Df Sp Roof 125 | 20875 |
| Spf Hf Floor 100 | 13635 |
| Spf Hf Snow 115 | 15680 |
| Spf Hf Roof 125 | 17045 |
