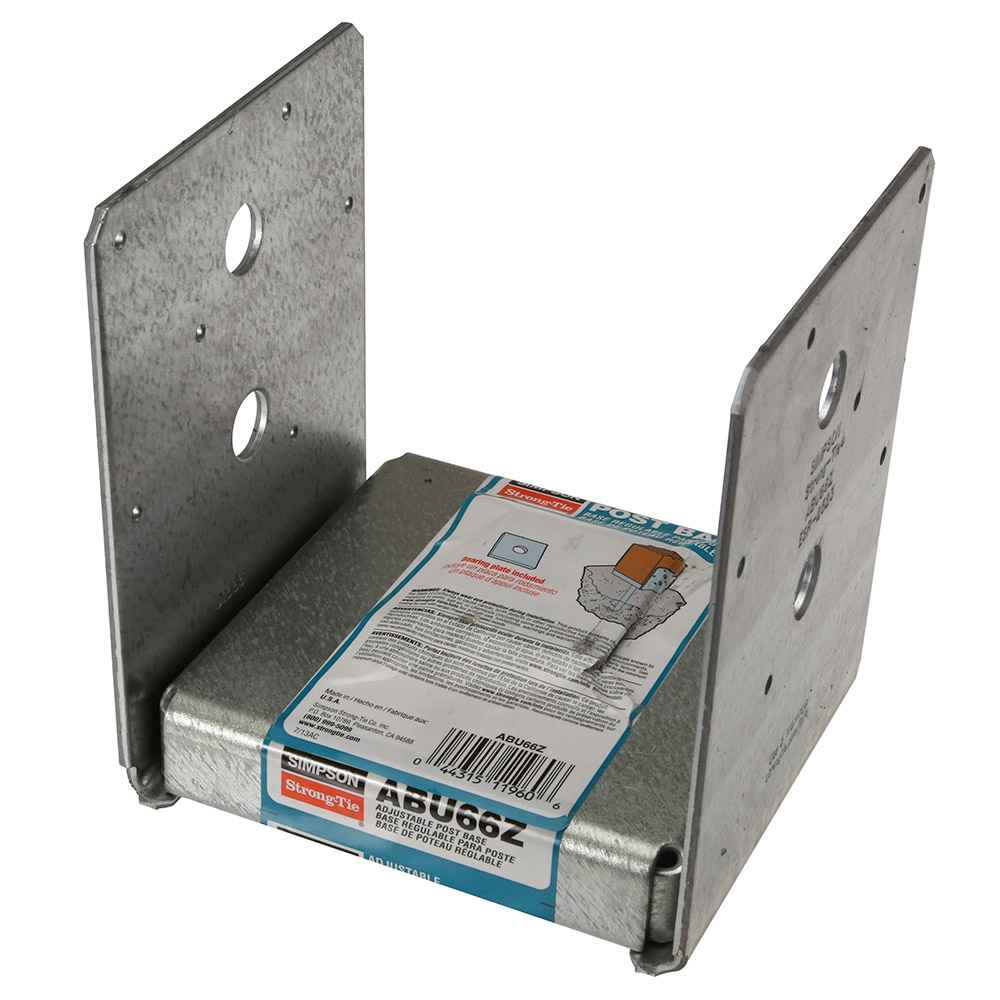

ABU66Z
Adjustable/Standoff Post Base (ABA/ABU/ABW)Retrofit adjustable post bases featuring a 1" standoff to prevent rot. Slotted for precise placement around the anchor bolt. Can be used for vertical posts or horizontal beams.
| Hanger Width | 5 1/2" |
|---|---|
| Hanger Depth | 6 1/16" |
| Nominal Beam Size | Triple 2x |
| Ga Base | 12 |
| Ga Strap | 10 |
| L | 5 |
| Anchor Dia | 5/8 |
| Fasteners Nails | (12) 0.162 x 3 1/2 |
| Df Sp Uplift 160 | 1405 |
| Df Sp Down 100 | 12715 |
| Spf Hf Uplift 160 | 1165 |
| Spf Hf Down 100 | 9115 |
