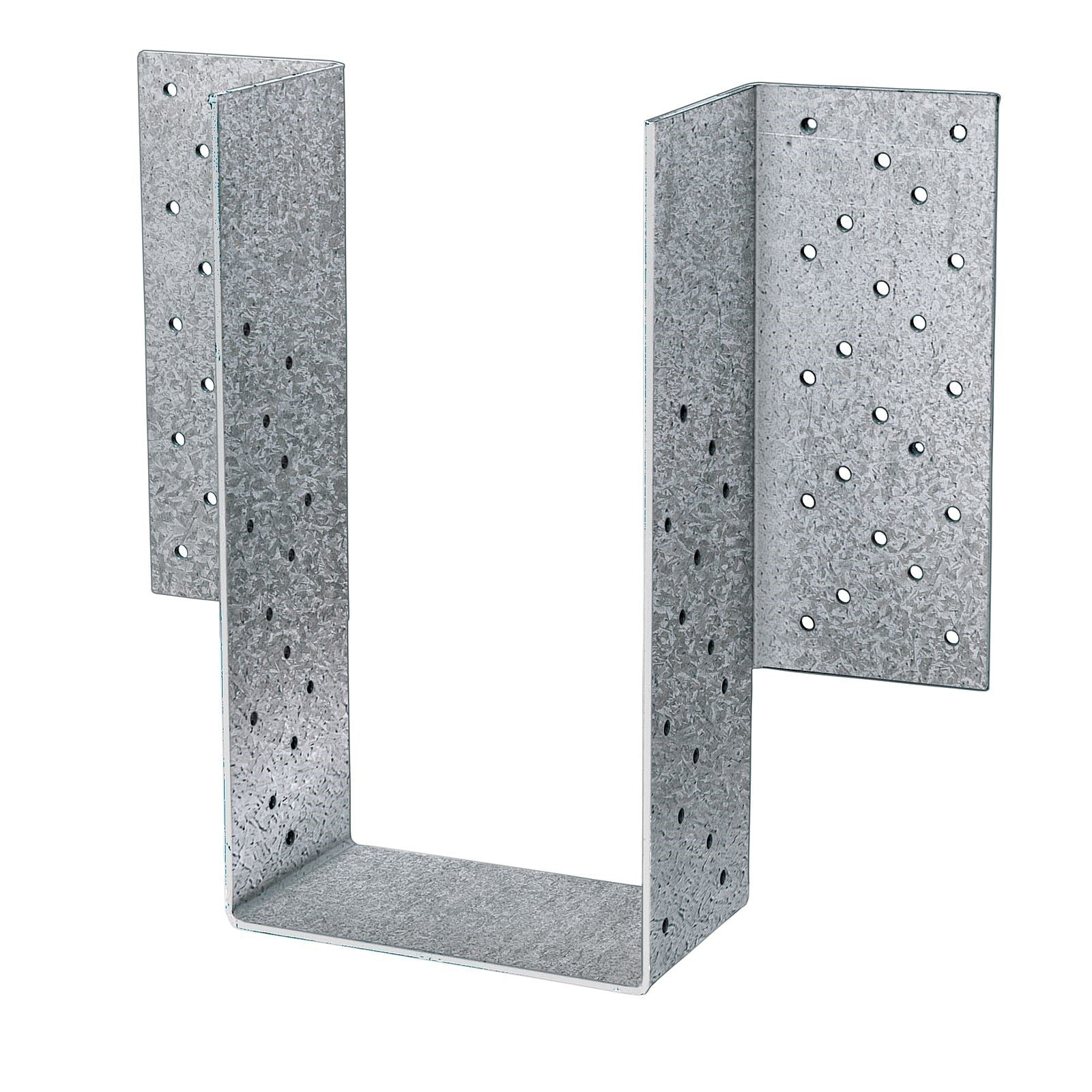

HHGU14.00-SDS
High-Capacity Girder Hanger (LGU/MGU/HGU/HHGU)High-capacity face-mount hangers utilizing 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws. Can be used for retrofit installations.
| Hanger Width | 14" |
|---|---|
| Hanger Depth | N/A" |
| Actual Beam Width | 13 3/4 |
| Ga | 3 |
| H Min | 13 |
| H Max | 30 |
| B | 5 1/4 |
| Ha | 12 3/8 |
| A | 4 3/4 |
| Fasteners Face | (44) 1/4" x 2 1/2" SDS |
| Fasteners Joist | (28) 1/4" x 2 1/2" SDS |
| Df Sp Uplift 160 | 14550 |
| Df Sp Download 100 | 18480 |
| Df Sp Download 115 125 | 20455 |
| Spf Hf Uplift 160 | 12525 |
| Spf Hf Download 100 | 13200 |
| Spf Hf Download 115 125 | 15180 |
